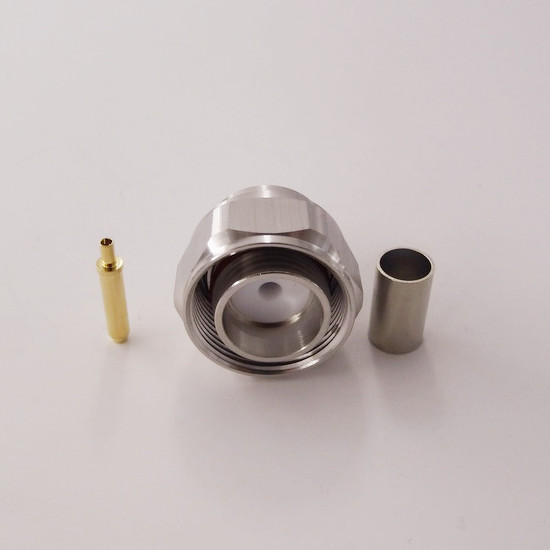

4.3/10 Male plug Crimp To LMR240 Cable
  • 4.3/10 Male plug Crimp To LMR240 Cable
  • 4.3/10 Male plug Crimp To LMR240 Cable
4.3/10 Male plug Crimp To LMR240 Cable 4.3/10 Male plug Crimp To LMR240 Cable

4.3/10 Male plug Crimp To LMR240 Cable

Electrical

Characteristic Impedance
50ohm
Frequency Range
DC-12GHz
VSWR
≤1.20@DC-3GHz; ≤1.30@3-6GHz
Insertion Loss
≤0.05dB√f(GHz)dB
Dielectric Withstanding Voltage
≥2500V RMS,50Hz,at sea level
Working Vlotage
500 W @2GHz/90℃
RF Power
3KW(max.)
Dielectric Resistance
≥5000MΩ
Contact Resistance
Center Contact ≤1.0mΩ
Outer Contact ≤1.0mΩ
Mechanical

Durability
Mating cycles ≥500
Material and Plating
Parts Name
Material
Plating
Body
Brass
Tri-alloy
Insulator
PTFE
—
Center conductor
Phosphor Bronze
Ag
Coupling nut
Brass
Tri-alloy
Ferrule
Brass
 Ni
Gasket
Silicone rubber
—
Environmental
Temperature Range
-55℃~+125℃
Weatherproof Rate
IP67
RoHS
Compliant


Last productNext product
