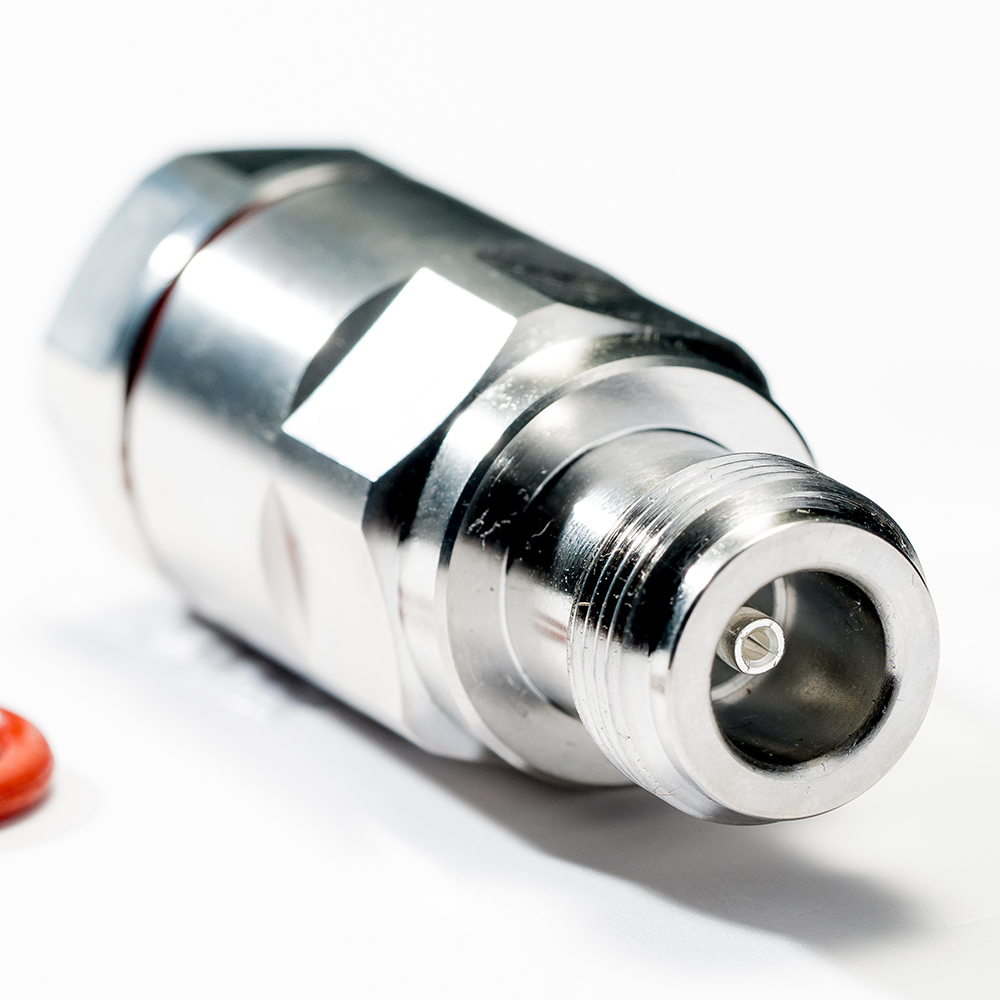

Coaxial RF Coaxia N Connector
  • Coaxial RF Coaxia N Connector
Coaxial RF Coaxia N Connector

Coaxial RF Coaxia N Connector

Type:N

Application:RF

Gender:Male

Connector Series:N RF connector

Impedance:50Ω

Frequency Range:DC-6GHZ

Application：Small Cell and MINO，DAS/In-building，Antennas，Outdoor and Indoor

Last productNext product

Which of our products are interested in, please fill in some specific, convenient for us to serve you!

Name:

Tel:

E-mail:

Country:

Interested product name :

CAPTCHA:

Submit the information to obtain product spec sheet，Please make sure that your email address is absolutely correct！

Get product quotes
  • Specification
  • Application scenario
  • Our advantage
  • FAQ

Specification

Product Description

Connector System Comparison

NEX10 features a compact design which is 50% smaller than 4.3-10.

NEX10
4.3-10
DIN
N
Passive Intermodulation
-166dBc @2*43dBm
-166dBc @2*43dBm
-165dBc @2*43dBm
-155dBc @2*43dBm
Power Handling
100W(2GHz)
500W(2GHz)
1000W(2GHz)
300W(2GHz)
Frequency Range
20GHz
6GHz
6GHz
6GHz
Return Loss
36dB@4GHz
34dB@6GHz
36dB@4GHz
32dB@6GHz
36dB@4GHz
32dB@6GHz
36dB@4GHz
32dB@6GHz
Coupling Mechanisms
Screw
Push Pull
Hand Screw
Screw
Push Pull
Hand Screw
Screw
Screw
Packaging Density
12.7mm
25.4mm
32mm
25.4mm



Application scenario

Application

Small Cell and MINO
DAS/In-building
Antennas
Outdoor and Indoor
Related Products




Our advantage

Expert--Low PIM,Low Loss,High Frequency products

Raynool can provide practical guidance on the optimum combination of coaxial cable and connectors to meet specific electrical and mechanical requirements for a customer’s operating frequency band and temperature ranges.



Raynool technology Co.,ltd has Its own R&D team ,and focuses on manufacturing RF connector, Cable assemblies, high speed cable assembly, and accessories for Wireless Infrastructure.
