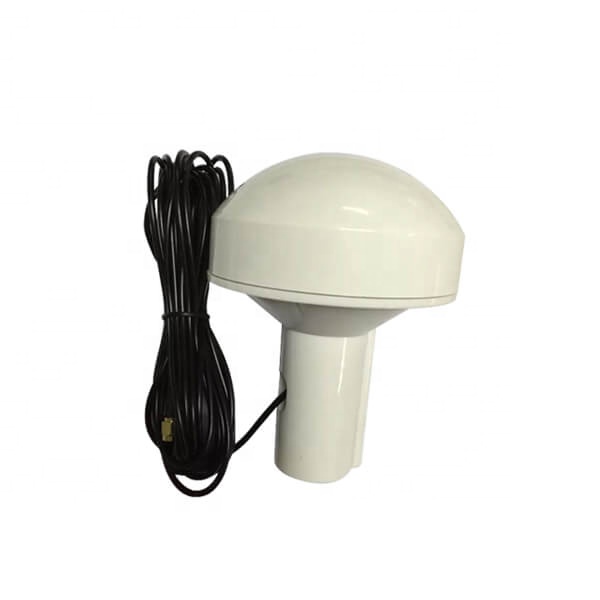

Outdoor Waterproof 4G LTE Antenna Plug GPS Passive Mushroom Antenna SMA Plug Solder RG174 with Base Station for Car GPS Ship GPS
Specification
| Item | Dielectric Antenna | Specifications | |
| GPS/BD Antenna | Frequency Range | GPS 1575.42MHz | |
| BD 1561.098卤2.046MHz | |||
| Polarization | RHCP | ||
| Gain | 2 dBi | ||
| VSWR | < 1.5 | ||
| LNA | Impedance | 50 Ohm | |
| Gain | 28卤2 dBi | ||
| Noise Figure | < 2 dB | ||
| VSWR | < 2.0 | ||
| Supply Voltage | 3-5V DC | ||
| Current Consumption | < 20 mA | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA J | ||
| Material | ABS | ||
| Mounting Method | Screw | ||
| Environmental | Operating Temperature | -40聽~ +85 | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP67(exclude cable outlet) | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | RoHS Compliant | ||
