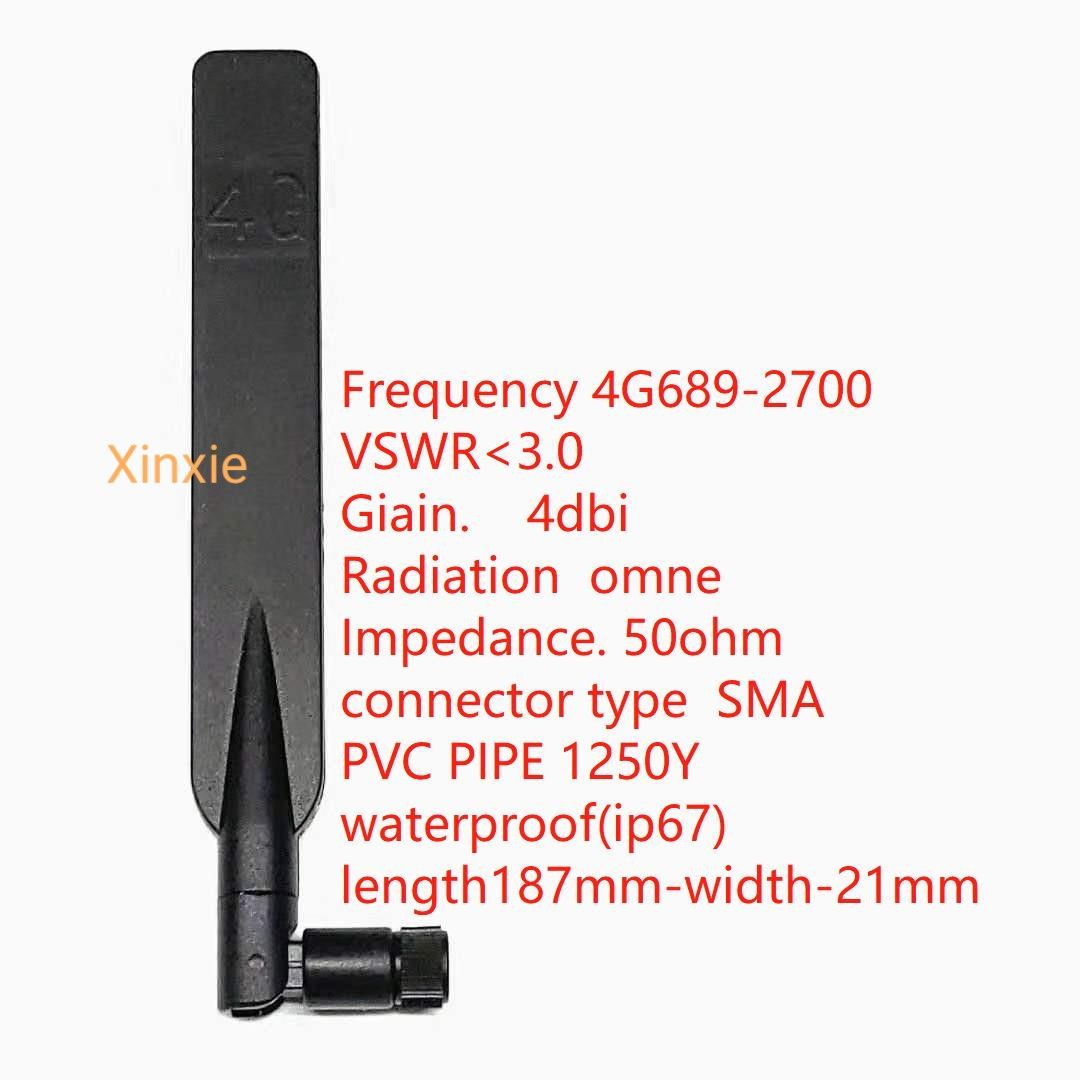

| V.S.W.R.Match | 698~960MHz ≤3.5 1710~2170MHz ≤2.5 2500~2700MHz ≤2.5 | |||
| Frequency Range | 698~960MHz 1710~2170MHz 2500~2700MHz | |||
| Peak Giain | 2.0dBi@ 698~960MHz 4.5dBi@ 1710~2170MHz 4.0dBi@ 2500~2700MHz | |||
| Radiation | Omni | |||
| Impedance | 50Ω | |||
| Surface Material | PC | |||
| Connector Type | SMA Plug/Revese SMA Plug | |||
| boundary dimension | 21.5*225mm | |||
Specification
Application scenario
| 3G Antenna | ||||
| V.S.W.R.Match 驻波比 | ≤3.0 698~960MHz ≤3.0 1710~2170MHz | |||
| Frequency Range 频率范围 | 698~960MHz 1710~2170MHz | |||
| Peak Giain 增益 | 3.0dBi@ 698~960MHz 4.0dBi@ 1710~2170MHz | |||
| Radiation 辐射 | Omni | |||
| Impedance 阻抗 | 50Ω | |||
| Surface Material 主体材质 | PC | |||
| Connector Type 接头类型 | SMA Plug/Revese SMA Plug | |||
| boundary dimension 外形尺寸 | 21.5*225mm | |||
Our advantage

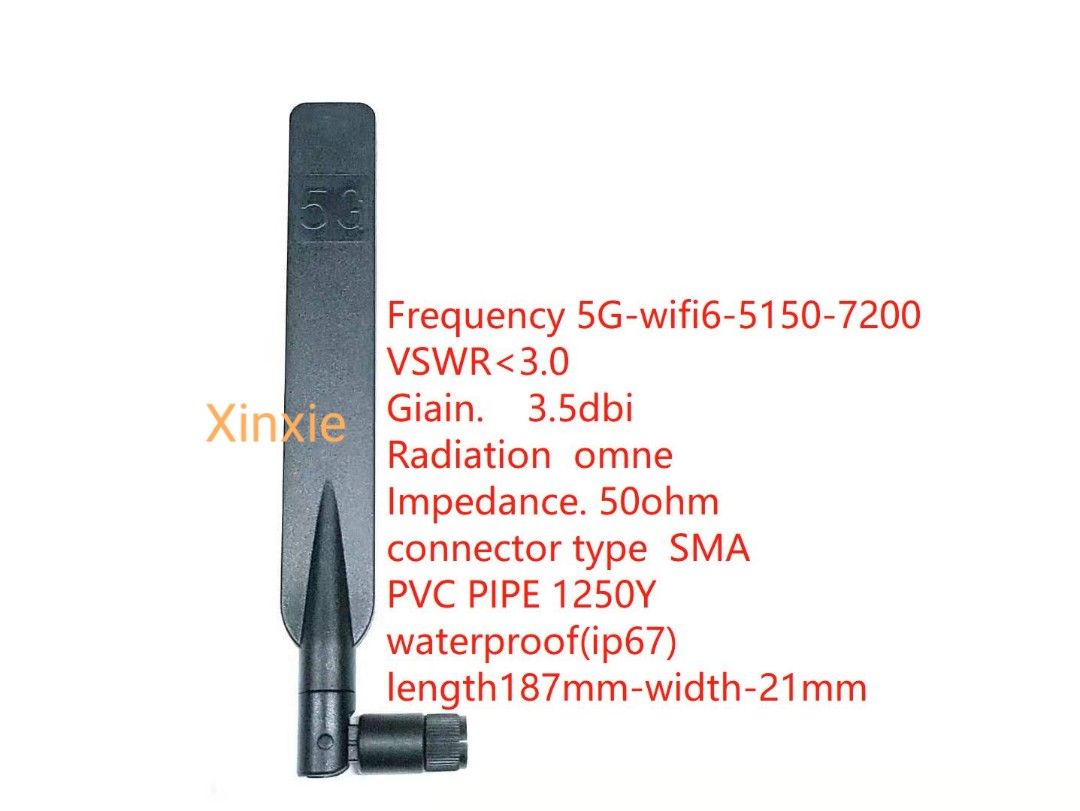

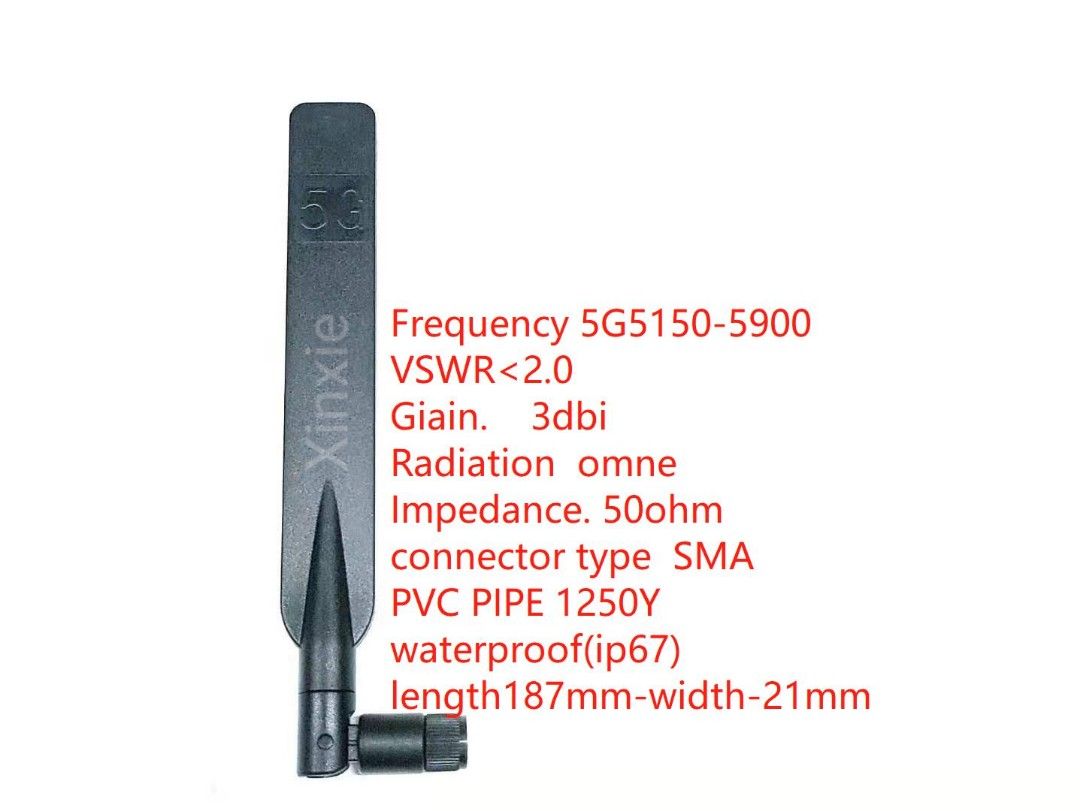

| 5G Antenna | ||||
| V.S.W.R.Match 驻波比 | ≤3.5 698~960MHz ≤3.0 3300~3700MHz ≤2.5 1525~1585MHz ≤2.5 4500~4900MHz ≤2.5 1710~2500MHz ≤2.5 5125~5900MHz | |||
| Frequency Range 频率范围 | 698~960MHz 3300~3700MHz 1525~1585MHz 4500~4900MHz 1710~2500MHz 5125~5900MHz | |||
| Peak Giain 增益 | 3.0dBi@698~960MHz 4.0dBi@3300~3700MHz 2.5dBi@1525~1585MHz 3.0dBi@4500~4900MHz 3.0dBi@1710~2500MHz 2.5dBi@5125~5900MHz | |||
| Radiation 辐射 | Omni | |||
| Impedance 阻抗 | 50Ω | |||
| Surface Material 主体材质 | PC | |||
| Connector Type 接头类型 | SMA Plug/Revese SMA Plug | |||
| boundary dimension 外形尺寸 | 21.5*225mm | |||
