MCX Plug

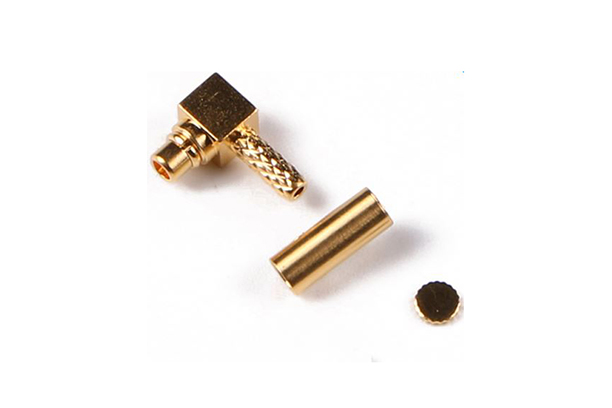

90° MCX Plug

Frequency range: 0 to 6GHz

V.S.W.R: ≤1.4

Customizable on demand

Last product Next product Get product quotes

Specification
Application scenario
Our advantage
FAQ

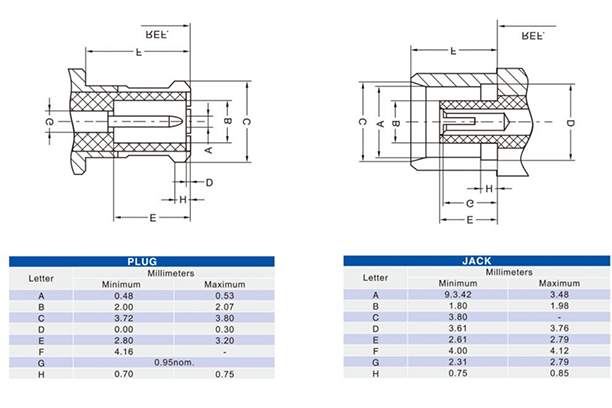

Specification

Electrical performance parameter

Characteristic impedance

50Ω, 75Ω

Voltage standing wave ratio

≤1.4

Frequency range

0~6GHz

Withstand voltage

750V / 50 Hz

Insulation resistance

≥1000MΩ

Contact resistance

between the central conductors ≤5 mΩ; ≤1 mΩ between the outer conductors

Insertion force

≤25N

Pull out force

8N-20N

Contact holding force

≥10N

Inserting and removing times

≥500cycles

Temperature range

-55°C (-67°F)up to +155°C(+311°F)

Material

Brass

Center contact

male PIN brass; Female PIN beryllium copper

Outer contact

beryllium copper

Crimp sleeve

brass

Insulation material

ptfe

The main supporting fields of MCX connector are transportation, communication, network, IT, medical, home appliances and so on. The rapid development of the technical level of products in the supporting field and the rapid growth of the market have strongly drawn the development of MCX connector technology. MCX connector has developed into a complete range of products, varieties and specifications, diverse structure types, professional direction segmentation, industry characteristics, standard system specification serialization and professional products. On the whole, the development of MCX connector technology shows the following characteristics: high speed and digital signal transmission, integration of all kinds of signal transmission, miniaturization and miniaturization of product volume, low cost of products, contact end mode table paste, module combination, convenient insertion and extraction, etc.

Application scenario

Mainly used in:

Antennas.GPS systems. Base station applications. Cable assemblies. Electrical components. Instruments and meters. Transmission systems - Wireless communication systems (software radio) - Telecommunications systems

Our advantage

Product advantage

1. Improve the production process

Connectors simplify the product assembly process. It also simplifies the mass production process;

2, easy to repair

If an electronic component fails, a connector can be installed to quickly replace the failed component;

3. Easy to upgrade

With technological advances, the component can be updated when the connector is installed, and the old component can be replaced with a new, more complete component;

4. Improve the flexibility of design

The use of connectors gives engineers greater flexibility in designing and integrating new products, as well as in building systems out of components.
