Application:RF
Gender:Female
Pins:1P

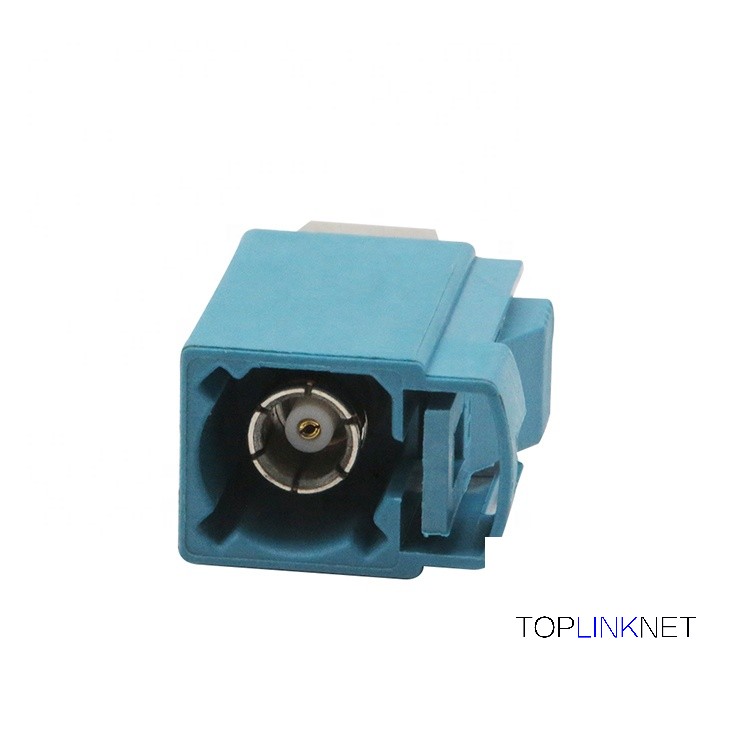

Product name:FAKRA right angle female connector code Z
Color:Water blue
Connector type:Straight
Certificate:ISO9001
Package:500pcs/bag
Brand:HONGBO
Item:FAKRA
MOQ:1 Pcs
Connector:SMB
Function:Connected
Specification

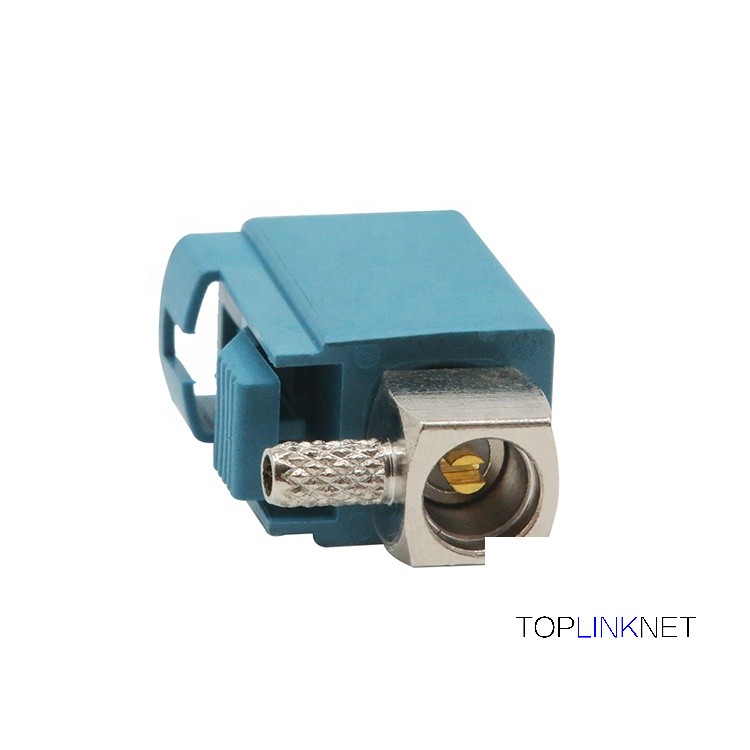

Fakra connector coding Z type SMB right angle female for Car Video, TV, Radio, Camera RG174, RG316 Coaxial cable
| Product design level: universal connector (level 2) | ||
| 1.Electrical Data: | 2.Mechanical Data: | 4.Material and plating |
| 1.1 Impedance: 50Ω | 2.1 Durability: ≥500 | Body: Brass/Nickle plating |
| 1.2 Frequency range: | 2.2 Engagement force:≤25N | Insulator:PTFE |
| DC-2.5GHZ | ||
| 1.3 Working voltage: | 2.3 Tight lock force:≥100N | Center contact:Bronze/ Gold plating |
| 335V RMS,50Hz, at sea level | ||

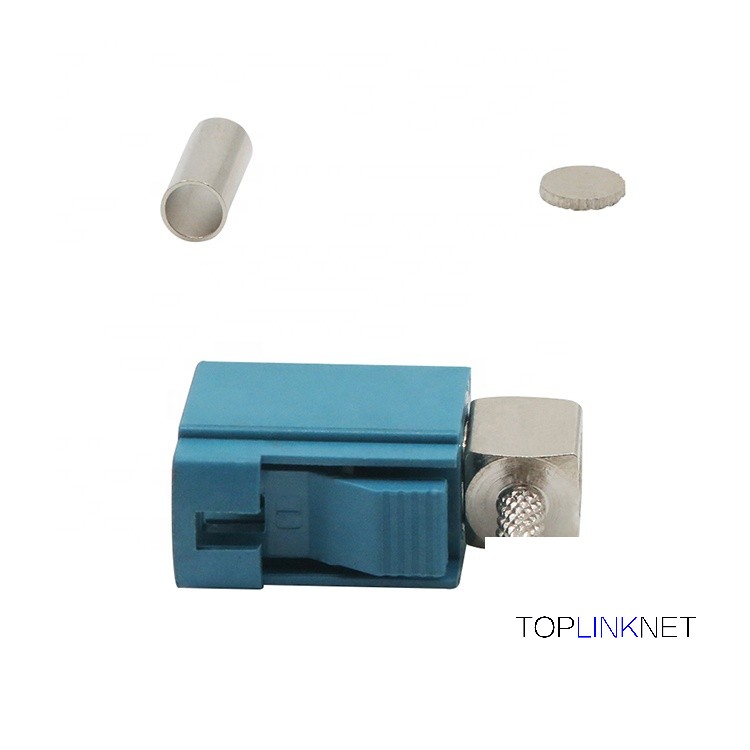

| 1.4 Dielectric Withstanding Voltage: | 3.Environmental Data: | Ferrule:Annealed Copper/Nickle plating |
| 1000V RMS,50Hz, at sea level | ||
| 1.5 VSWR: <1.3 @DC-2.5GHz | 3.1 Temperature Range: | Plastic housings:PA |
| -40 ° C ~ 105 ° C | ||

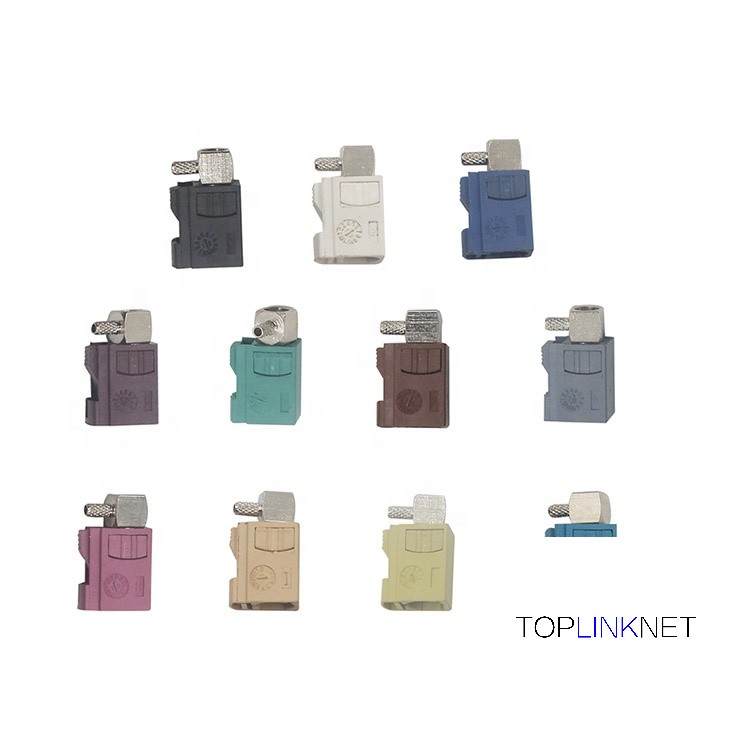

| 1.6 Contact resistance: | 3.2 Salt spray resistance: | Available Colors: A(Black), B(White), C(Blue), D(Bordeaux), E(Green), F(Brown), G(Grey), H(Violet), I(Beige), K(Curry), L(Carmine red), M(Pastel |
| inner conductor ≤6MΩ | >48H | orange), N(Pastel green), Z(Water blue) |
| outer conductor ≤1MΩ | ||
| 1.7 Insulation resistance:1000MΩ | 3.3 Operating humidity: | |
| 10% ~ 95%RH |

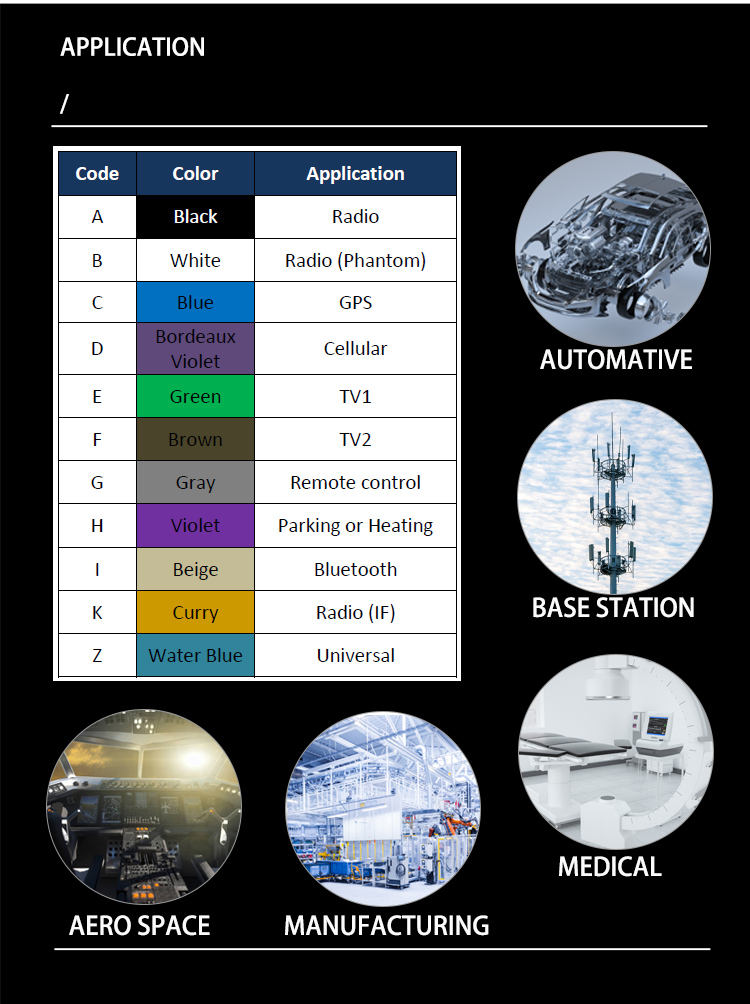

Application scenario
