RF Cable Assembly with SMA Connector IPEX Connector

Specification

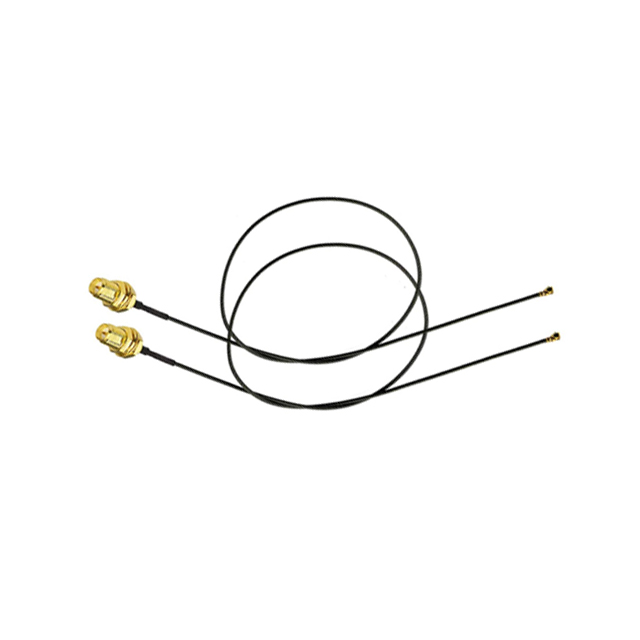

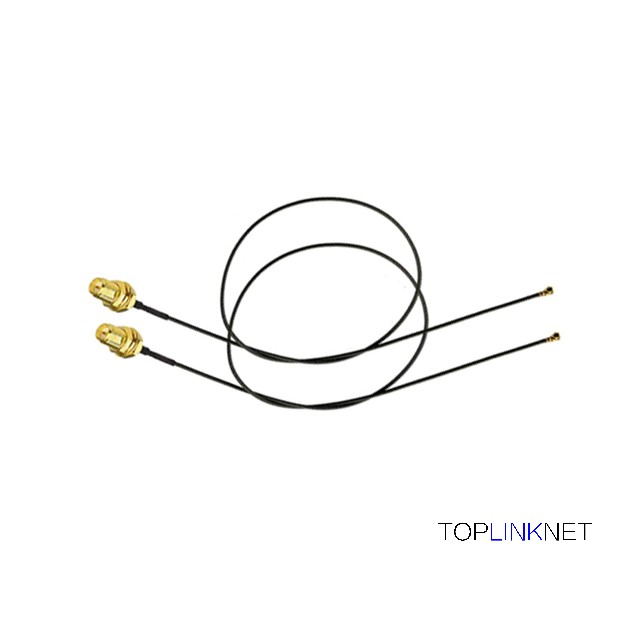

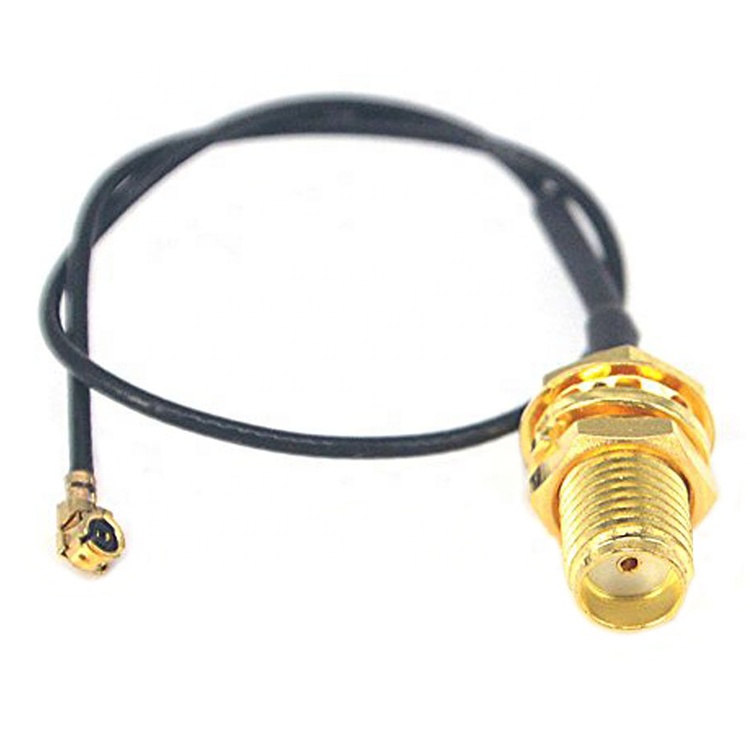

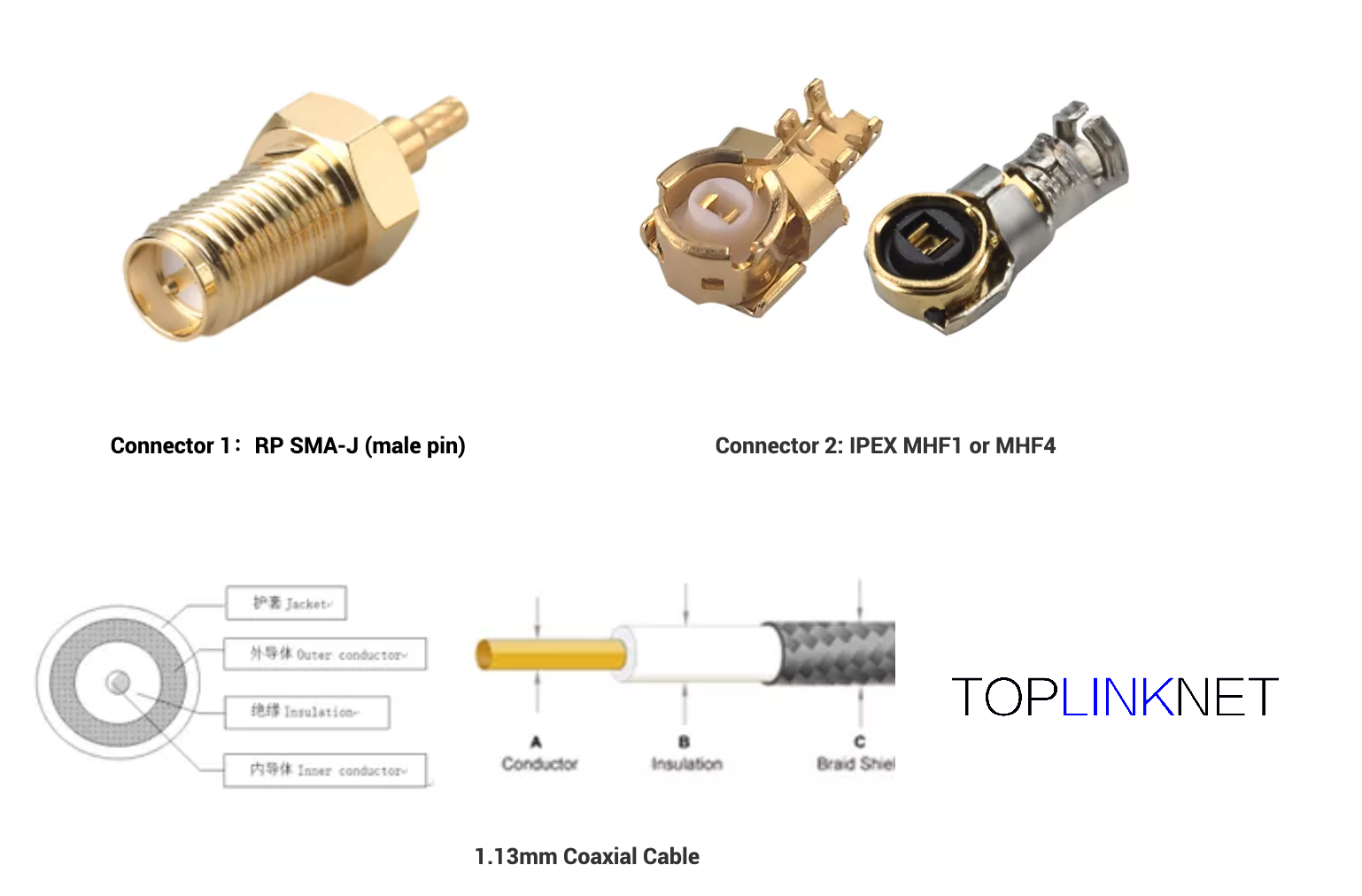

Cable Coaxial Assembly With SMA male RF connector，Waterproof RP SMA to IPEX MHF U.fl 1.13mm 100mm Cable Assembly with SMA Connector IPEX Connector

Model Number:SMA

Type:Sma

Application:RF

Gender:Male

Pins:1P

Connector Series:RF connector

Attachment Method:Crimp

Impedance:50Ω

Frequency Range:DC-6GHZ

VSWR:≤1.15

Insertion Loss:≤0.05

Insulation Resistance:≥10000MΩ

Proof Voltage:2500V

Temperature Range:-55℃ to +155℃

we has Its own R&D team ,and focuses on manufacturing RF connector, Cable assemblies, high speed cable assembly, and accessories for Wireless Infrastructure.

Leave a message to us,

We will come back to you with custom solution!

Application scenario

Low PIM,Low Loss,High Frequency products

Our advantage

FAQ

Q:Could you please advise reference list of customers?

A: We are an OEM manufacture of Amphenol & Rosenberger.

Q: Could you accept custom products?

A: this is a custom solution provider,especially in Low PIM products,pls contact our sales and share the specification to us.

Q: What is your MOQ?

A: Our MOQ is normally 100 pcs.

Q: How about the Lead Time?

A: For connector,  the LT is 1 week.

    For Cable Assembly, the LT is 2 to 4 weeks.

    For Coaxial Cable ,the LT is 4 weeks.
