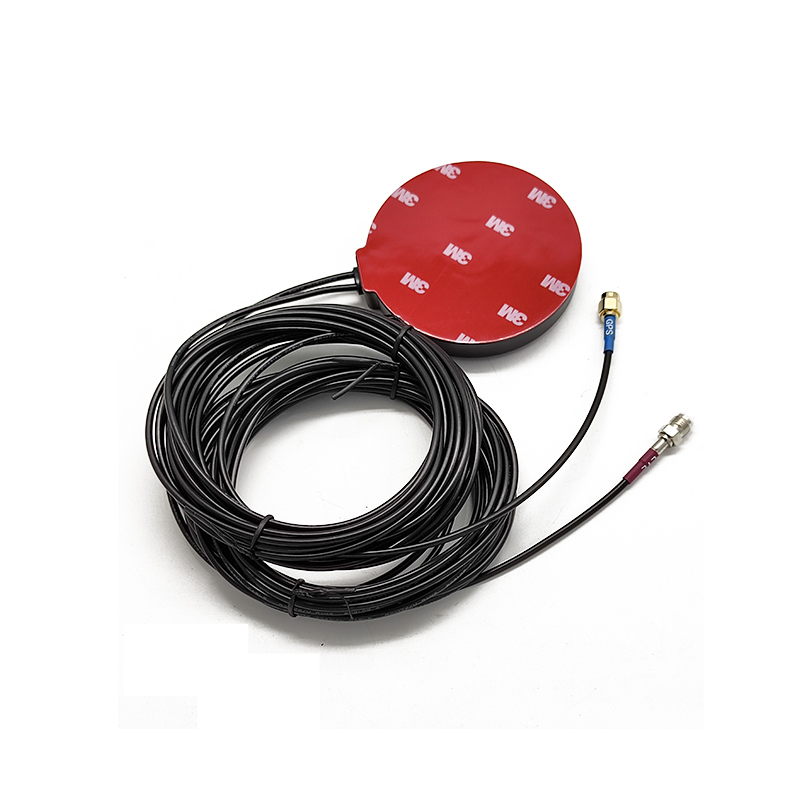

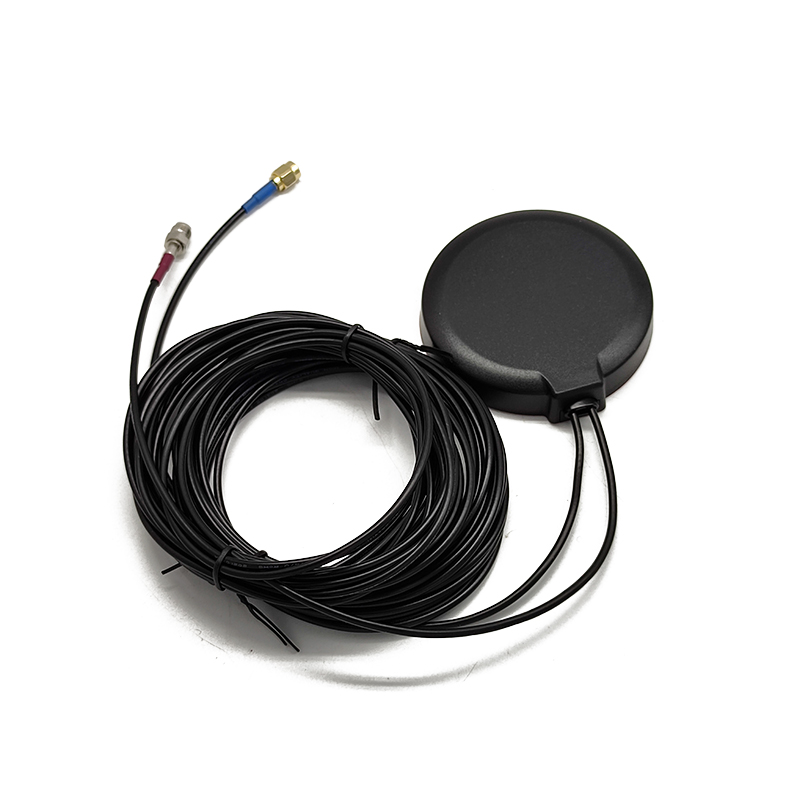

IP67 GPS LTE GSM GPRS externa communication antenna 4g gps antenna magnet
GPS Frequency:1575.42±3MHz
LTE Antenna Frequency:10 to 55Hz with 1.5mm amplitude 2hours
Cable:RG174
Cable Length:3m

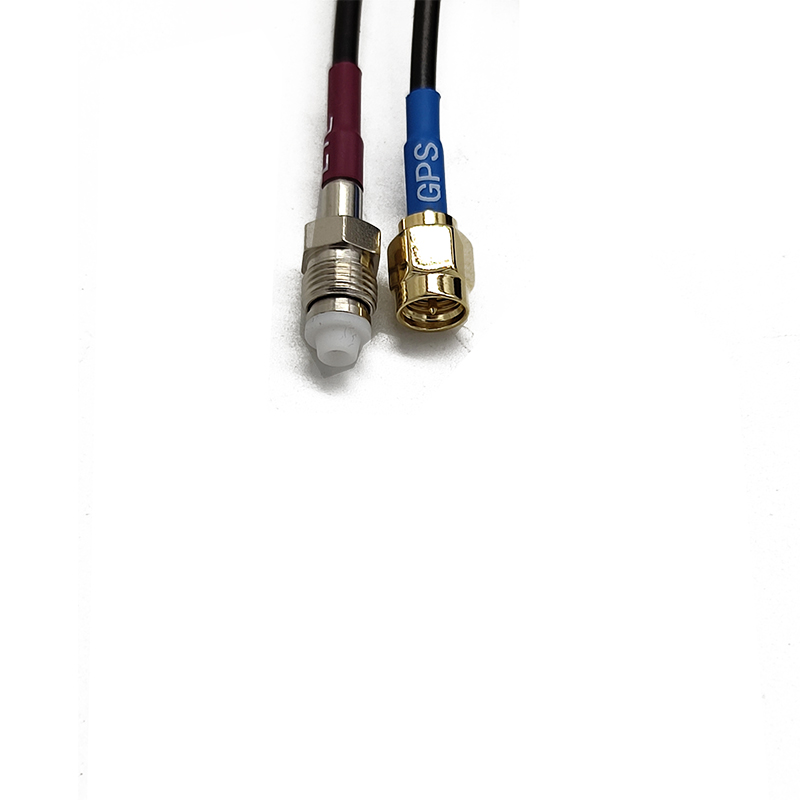

Connector:SMA Male

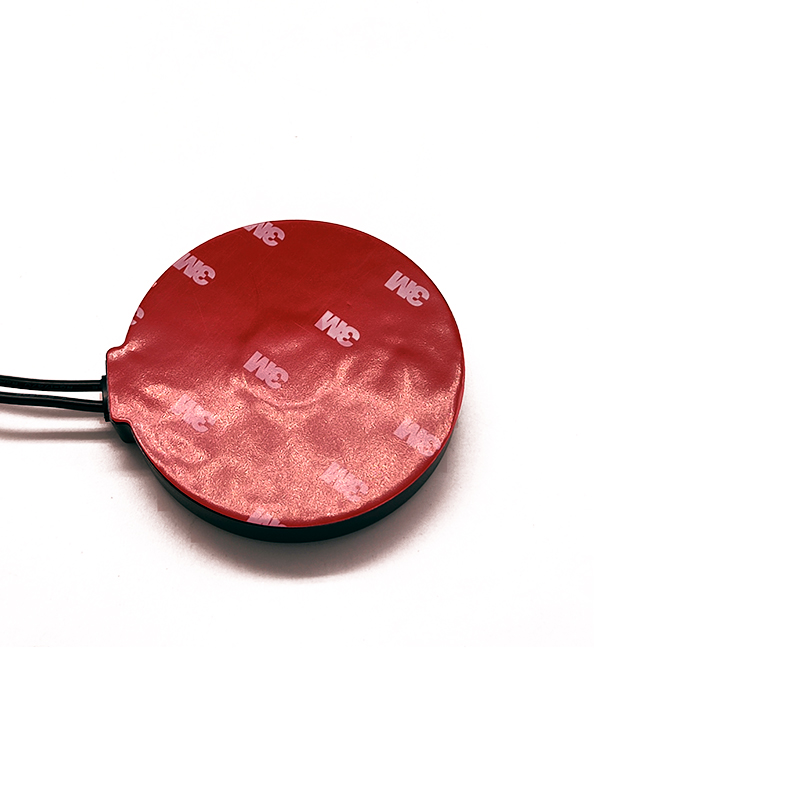

Mounting Method:Adhesive/Magnet
Operating Temperature:-40℃~+85℃
Relative Humidity:Up to 95%
Ingress Protection:IP67
Specification
| Item | Specifications | |
| Antenna | Center Frequency | 1575.42±3MHz |
| Band Width | CF±5MHz | |
| Polarization | RHCP | |
| Gain | 5dBic（Zenith） | |
| V.S.W.R | ＜1.5 | |
| Impendance | 50Ω | |
| Axial Ratio | 3dB（max） | |
| Dimension | D81.6*14.6mm | |
| LNA | Gain | 28±2dB |
| Noise Figure | ＜2 | |
| Filter Insertion Loss | ＜3dB | |
| Supply Voltage | 2.2~5V DC | |
| Current Consumption | 5~15mA | |
| V.S.W.R | ＜3 | |
| Mechanical | Cable | RG174 |
| Connector | FAKRE or others | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 75% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
