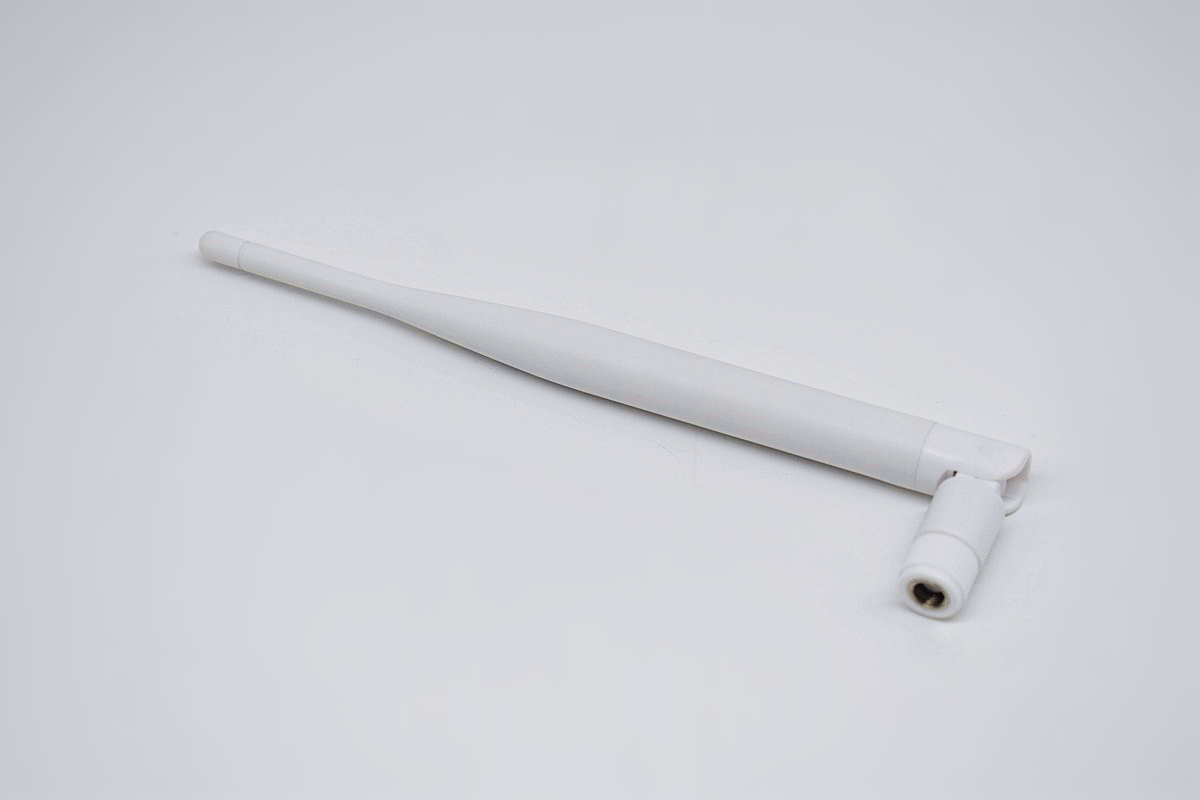

2.4G single frequency glue stick antenna
5.8G single frequency glue stick antenna
dual frequency glue stick antenna
Specification
 | type 2.4G single frequency glue stick antenna (customizable) | |
Standing wave ratio | ≤2.0 | |
Frequency Range | 2400~2500MHz | |
Gain | 5dBi | |
radiation | All | |
impedance | 50Ω | |
The main material | TPEE (halogen free) brass (low lead <1000ppm) nickel plated | |
Connector type | SMA Plug/Revese SMA Plug (IP67 waterproof) | |
Dimensions | 13*196mm | |
| 5.8G single frequency glue stick antenna (customizable) | |
Standing wave ratio | ≤2.0 | |
Frequency Range | 5150~5850MHz | |
Gain | 5dBi | |
radiation | All | |
impedance | 50Ω | |
The main material | TPEE (halogen free) brass (low lead <1000ppm) nickel plated | |
Connector type | SMA Plug/Revese SMA Plug (IP67 waterproof) | |
Dimensions | 13*196mm | |
| dual frequency glue stick antenna (customizable) | |
Standing wave ratio | ≤2.0 | |
Frequency Range | 2400~2500MHz 5150~5800MHz | |
Gain | 3dBi@2400~2500MHz 5dBi@5150~5800MHz | |
radiation | All | |
impedance | 50Ω | |
The main material | TPEE (halogen free) brass (low lead <1000ppm) nickel plated | |
Connector type | SMA Plug/Revese SMA Plug (IP67 waterproof) | |
Dimensions | 13*196mm | |
Application scenario
we are committed to customer service and finding the right product solution for each customer. we have developed several series over 200 standard products like wifi antenna, 4G antenna, 315MHz antenna, 433MHz antenna, GPS antenna, walkie talkie antenna, sucker antenna, 4G router, RF connectors and accessory and more.
