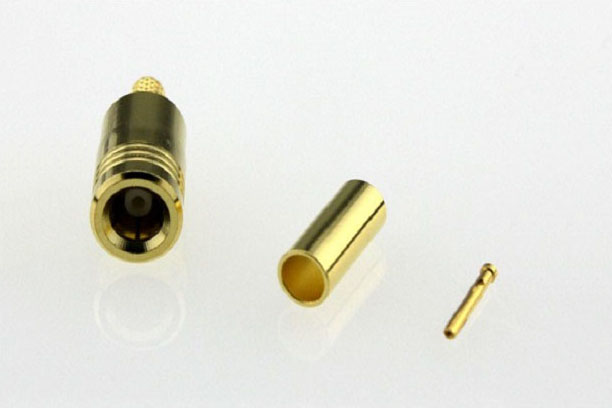

SMB Plug for Cable RF1.13/1.32

Frequency range: 0 to 4 GHz

V.S.W.R:1.3

Impedance: 50 Ω / 75Ω

Can be customized as required

Last product Next product Get product quotes

Specification
Application scenario
Our advantage
FAQ

Specification

Electrical performance
Temperature range						-65~+165℃(PE Cable-40~+85℃)
Vibration						100m/S2(10 to 500Hz)
Characteristic impedance						50Ω/75Ω
Frequency range						DC~4GHz
Frequency range						DC~4GHz
Operating voltage						335V RMS
Voltage						1000V RMS
Center contact resistance						≤6mΩ(Milliohms Max)
Outer conductor resistance						≤1mΩ(Milliohms Max)
Insulation resistance						≥5000mΩ(Milliohms min)
Needle holding force of central conductor						≤0.28N
Voltage standing wave ratiobent						straight ≤1.3
Durability						≥500 times
SMB connectors are coaxial RF connectors invented in the 1960s. SMB connectors are smaller in size than SMA connectors, adopt push-in coupling mode, have 50 OHms or 75 ohms impedance versions, and provide excellent electrical performance at frequencies from DC to 4GHz

Application scenario

Main applications:

Antenna, GPS systems, Base station applications, RF cable assemblies, electrical components, Instrumentation, Driveline systems, Wireless communication systems, telecommunications systems

Our advantage

SMB type coaxial connector is a small push-lock rf coaxial connector, with small volume, light weight, easy to use, excellent electrical performance and so on

FAQ

Q1.How can I get some samples?

A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.

Q2.What is your delivery time?

A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS

Q3.Can you do OEM or ODM?

A: Yes, we can do OEM and ODM products.

Q4.How does your factory do regarding quality control?

A1: In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;

A2: Skillful workers care every details in handling the producing and packing processes.

Q5. What's your payment way?

A1.We accept Alipay/West Union/TT. All major credit cards are accepted through secure payment processor ESCROW.

A2.Payment must be made within 3 days of order.

A3.If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.

Q6. How abort the shipping?

A: For small orders, we will send the goods by international Express like Fedex, DHL, TNT , UPS or SF, usually it takes 3-5 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.
