Insulator:PTFE/Plastic
ROHS:ISO9001:2000
Produce machine:CNC
Frequency:0~3GHz
Impedance:50ohm
Cable type:RG6 Cable Assembly
Specification
| RF Coaxial Connector F type male to F male plug with RG6 Cable Assembly | |
| Electrical | 50Ω |
| Impedance | |
| Frequency range | 0~3GHz(50Ω) |
| Working Voltage | 500V max |
| Withstand Voltage | 1500V rms |
| VSWR: | ≤ 1.22 |
| -Straight | |
| -Rigth Angle | ≤ 1.3 |
| Contact resistance: | ≤1.5mΩ |
| -center contact | ≤1mΩ |
| -outer contact | |
| Insulation resistance | ≥5000MΩ |
| Mechanical | ||
| Temperature range | -55掳C~+155掳C | |
| Durability(matings) | >500 | |
| 聽Material and plating | ||
| Piece part | Material | plating |
| Body | Brass | Nickel plated |
| Center conductor | Brass | Gold or silver plated |
| Crimping suite | Copper alloy | Nickel plated |
| O-ring sealing | 6146 silastic | |
| Insulator | PTFE | |

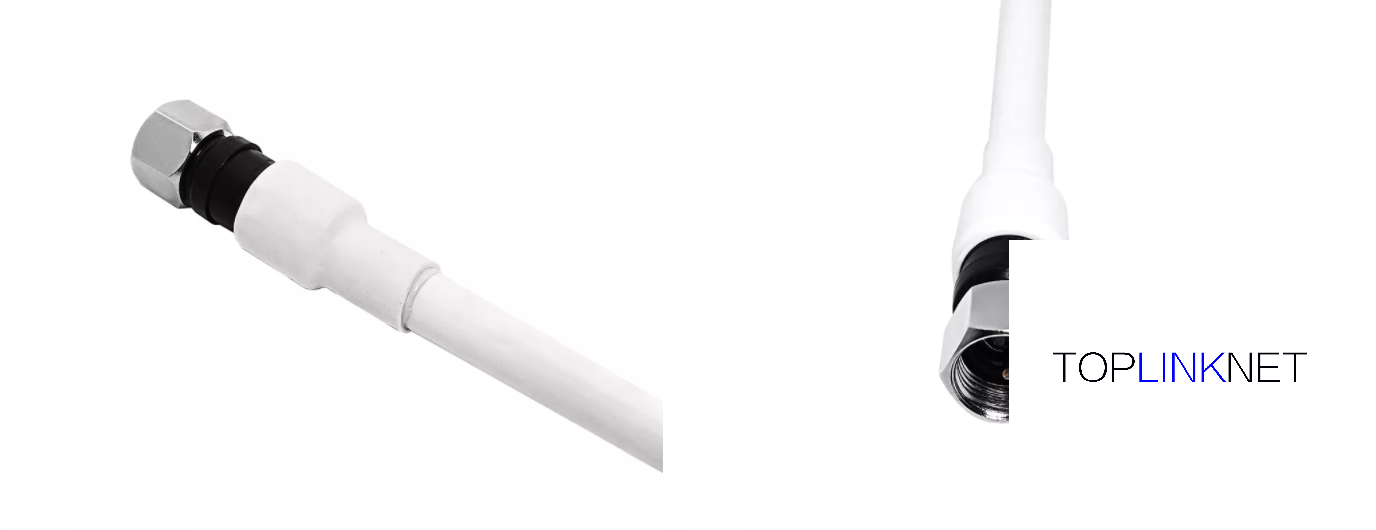

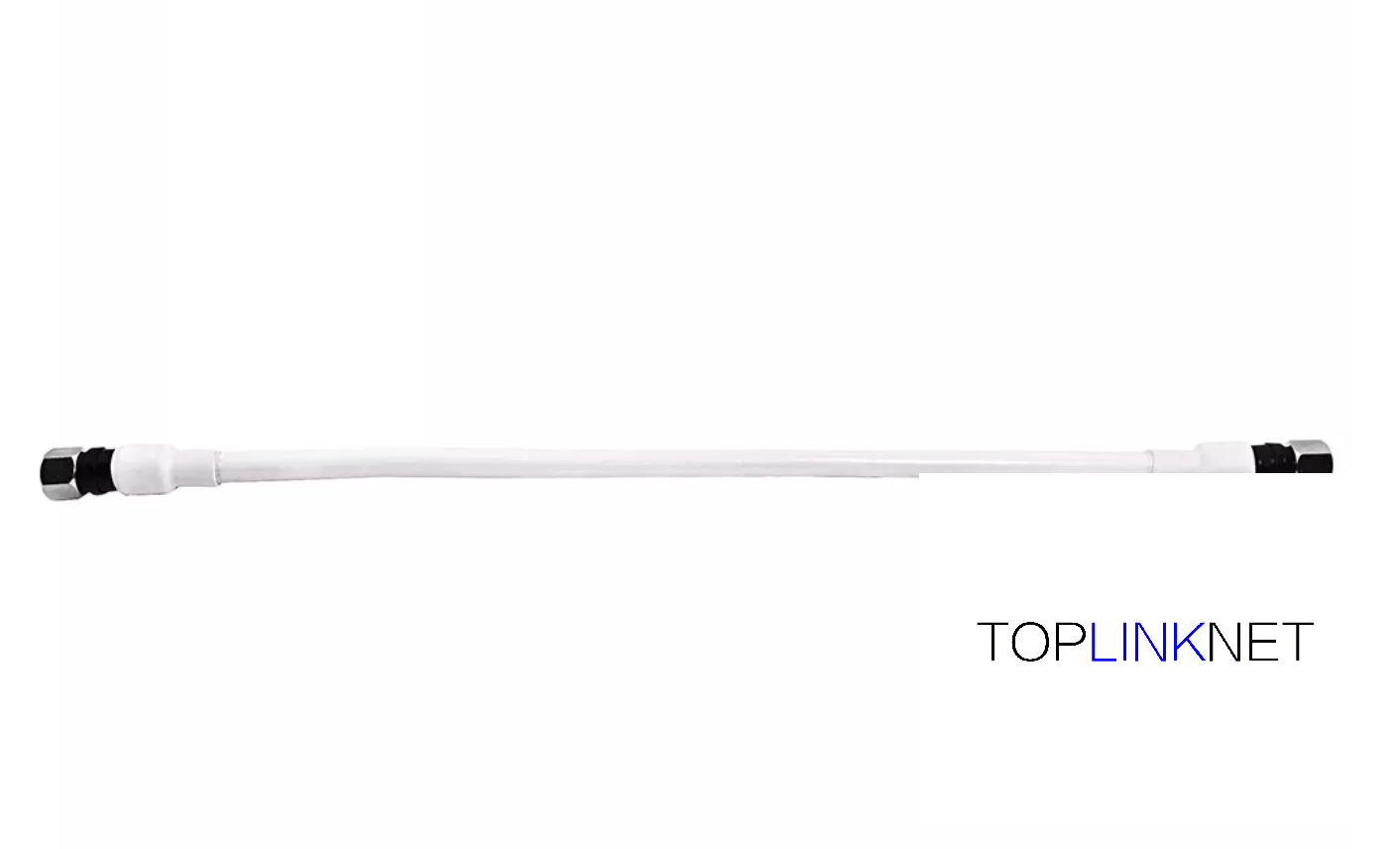

RF Coaxial Connector F type male to F male plug with RG6 Cable Assembly
☀ RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM) .
☀ We focus on coaxial assemblies.
☀ Our custom RF cable assemblies are built-in and shipped worldwide.
☀ RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
☀RF cable assemblies includes: RG141/RG142/RG174/RG178/RG179/RG180/RG187/RG196/RG213/RG214/RG218/RG219/RG223/RG303/RG316/RG316DS/RG393/RG400/RG401/RG402/RG405/RG58/U
☀ RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs andapplications.
☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration
by calling our sales department.
