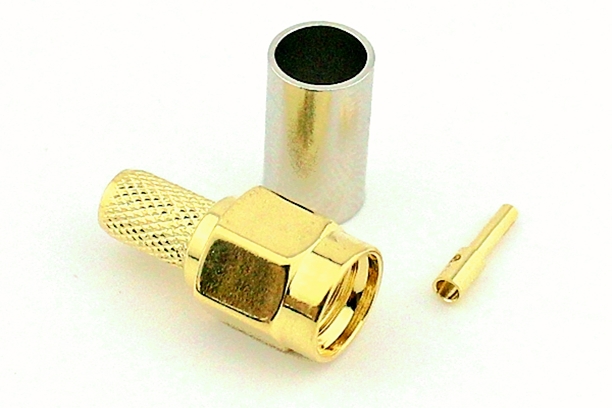

RP SMA Jack for RG316/174
Frequency range: 0 to 6GHz
V.S.W.R: ≤1.15
Impedance：50Ω
Customizable on demand

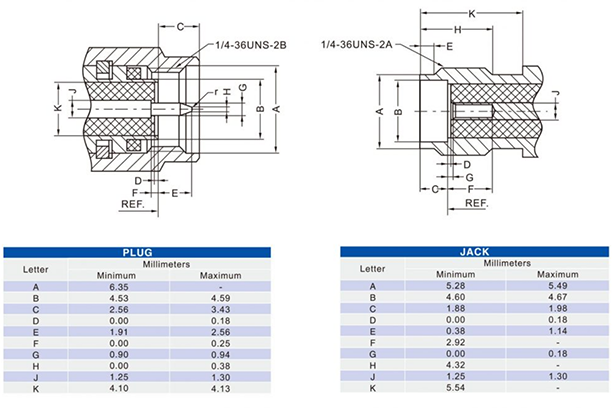

Specification
| Electrical performance parameter | |||||||||||
| Temperature range | -65～+165°C (PE Cable -40～+85°C) | ||||||||||
| Frequency Range | DC～6GHz | ||||||||||
| Working Voltage | 335V max | ||||||||||
| Withstand Voltage | 1000V rms | ||||||||||
| Contact resistance | |||||||||||
| Center Contact | ≤ 3 mΩ | ||||||||||
| Outer Contact | ≤ 2 mΩ | ||||||||||
| Insulation resistance | ≥ 5000 MΩ | ||||||||||
| Insertion loss | ≤0.15 dB/6GHz | ||||||||||
| V.S.W.R | ≤1.15 | ||||||||||
| Durability(mating) | ≥500次（cycles） | ||||||||||
| shell | brass gold | ||||||||||
| contact pin/ socket | brass gold/beryllium gold | ||||||||||
| insulator | PTFE | ||||||||||
| The TYPE SMA rf coaxial connector was designed by Bendix Corporation and Omni-Spectra as an OSM connector in the late 1950s and was one of the most commonly used RF/microwave connectors at the time. Generally, THE SMA connector is connected to the SMA905 optical fiber, and the standard size of the MA905 optical fiber connector is the core diameter, core length and nut specification, which are 3.172mm, 9.8mm and 1/4 to 36 threads respectively. | |||||||||||
Application scenario
Main applications: Aerospace, defense, instrumentation, medical, commercial vehicles, Bluetooth, GPS, communications, base station, data, wireless area network,etc
Our advantage
SMA joint has the characteristics of small size, high reliability, wide frequency band, excellent performance and long life, so it is suitable for microwave equipment and digital communication system in the rf loop to connect rf cable or microstrip line.
