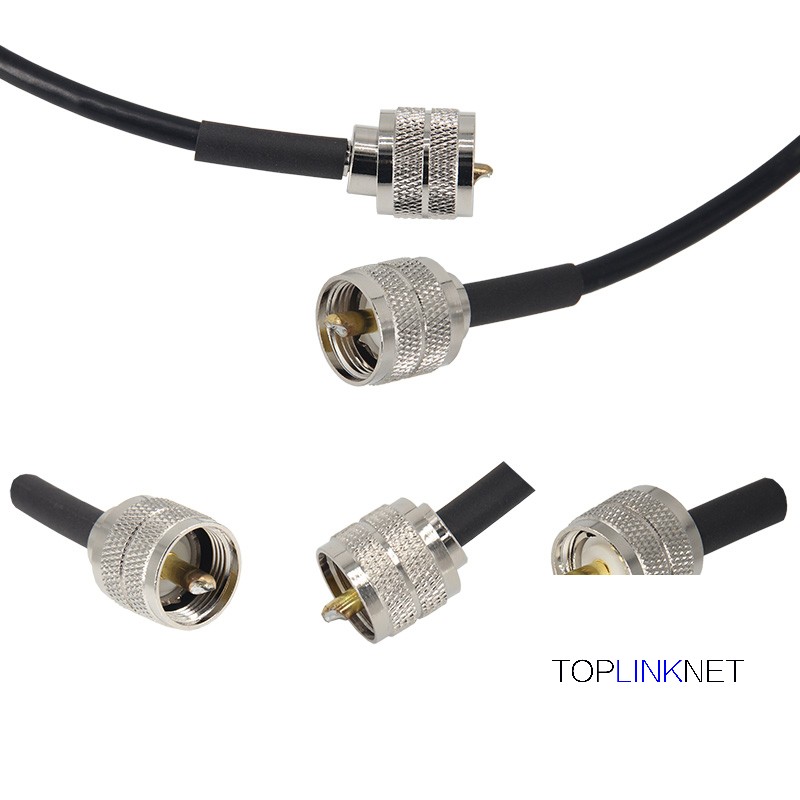

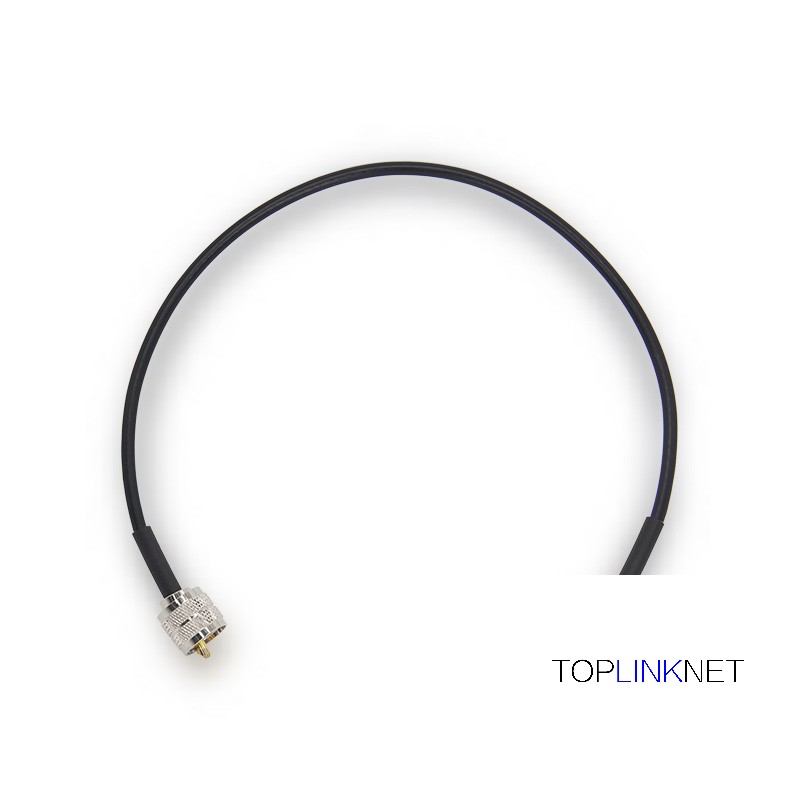

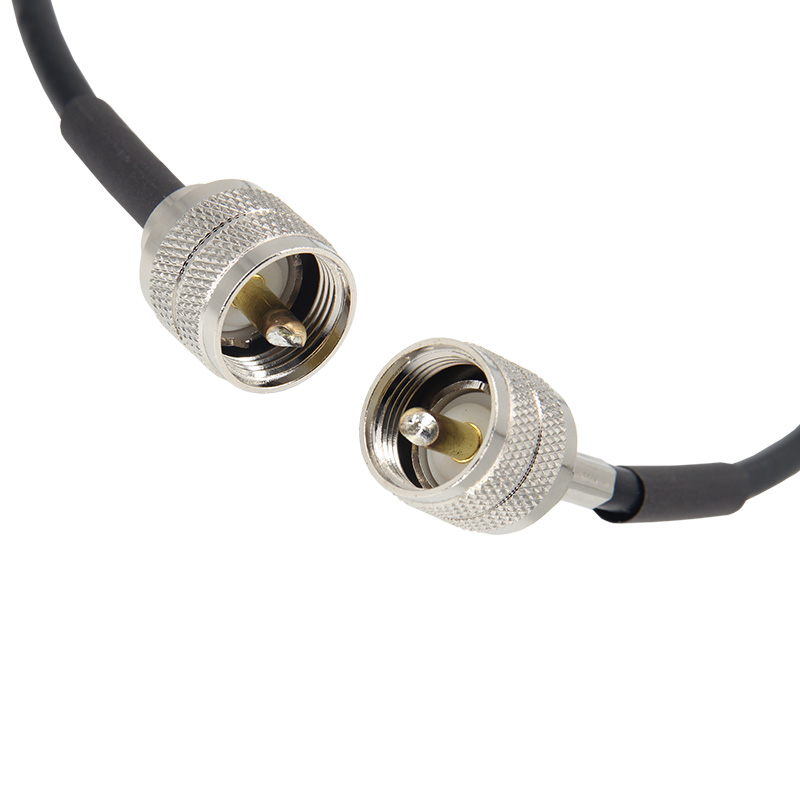

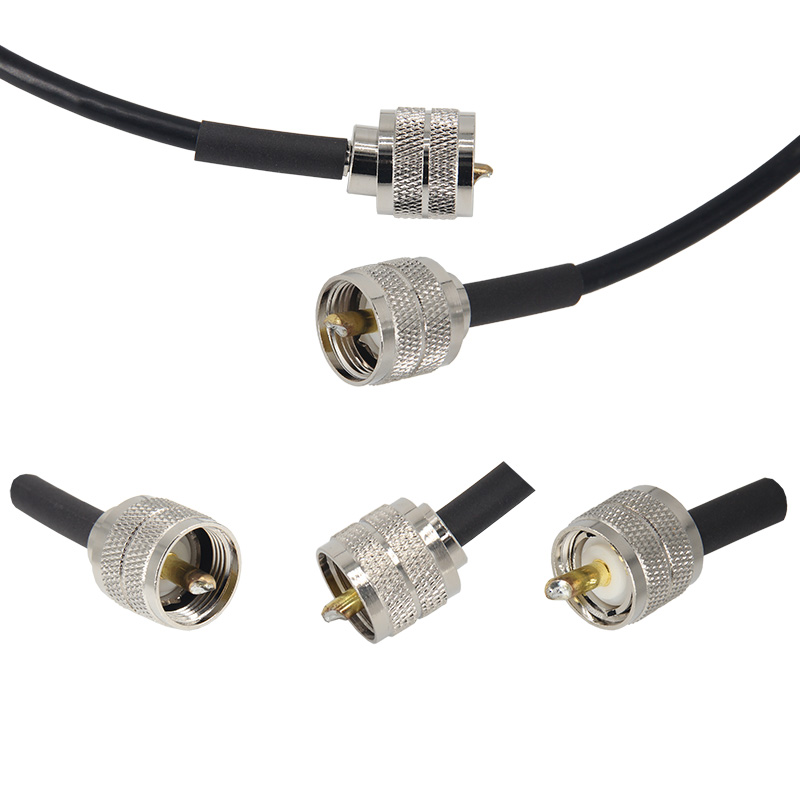

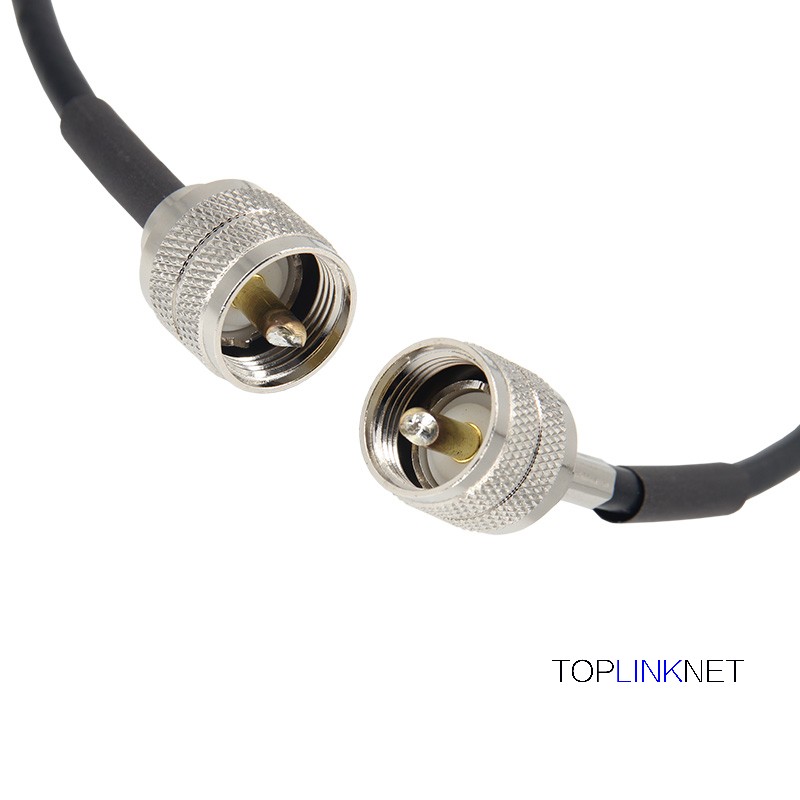

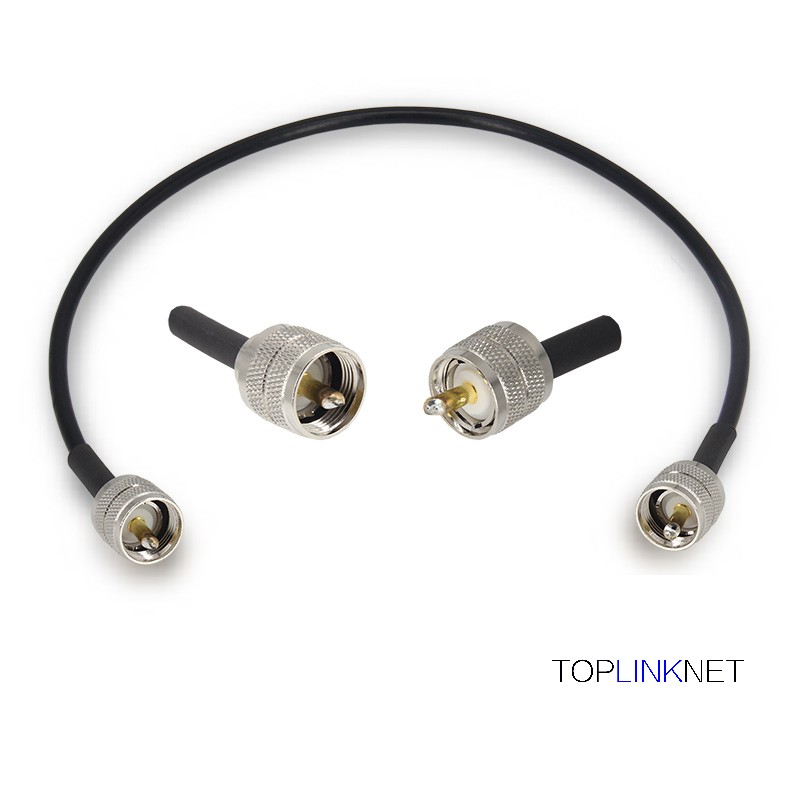

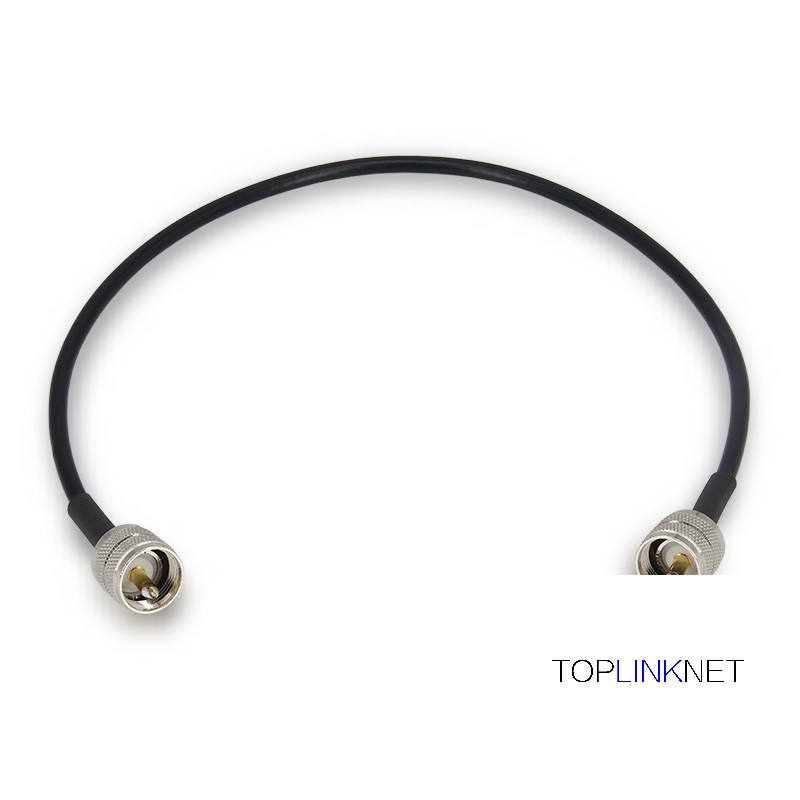

RG58 50 Ohm Coaxial Cable Assembly

Number of Conductors:One core

Net weight:0.03KG/ meters

Inner Conductor:Bare copper wire / tinned copper wire / copper coated steel wire

Connection Mode:Welding

Impedance(ohm):No constant

Operating temp:-55~+155℃

Minimum bending radius(once):25mm

durability:≥500 times

Environmental protection:yes

Cable Length:Length can be customized to customer requirements

Frequency range:DC~3GHz

Last product Next product Get product quotes

Specification
Application scenario
Our advantage
FAQ

Specification

3.Mechanical and Electrical Performance Parameters of Components
Mechanical, performance description	parameter
characteristic impedance	No constant
Temperature range	-55~+155℃
Frequency range	DC~3GHz
(dB/m)Cable decay	/
Minimum bending radius(once)	25mm
Voltage resistance	2000Vrms/minEnvironmental protection
Is there SGS environmental eport	yes
Connector end injection molding	Using PVC material, the shape can be customized according to customer requirements
Cable Length	Length can be customized to customer requirements
Cable sheath color	Customized colors can be made according to customer requirements
VSWR	DC~3MHz≤1.25

Application scenario

The structural parameters
1. Cable parameters
The serial number	Material quality	The diameter
Inner conductor	Bare copper wire / tinned copper wire / copper coated steel wire	1.18mm
Insulation layer	Polytetrafluoroethylene (PTFE)	2.95mm
Outerconductor	Bare copper wire / tinned copper wire	3.50mm
Cable sheath	Polyvinyl chloride(PVC),	4.96±0.05mm
2. Connector parameters
The serial number	The serial number
Outer shell	Brass/Nickel plating
Plug hole	Brass / hard gold plating
Insulator	PTFE
Connection Mode	Pressing type
durability	≥500 times (cycles)

Our advantage

FAQ

Q1: Which cable do you produce?

A: We are specialized in the manufacture of RG series, D-FB series, SYV series, TLMR series and semi-flexible series coaxial cables and high temperature cable assemblies. Provide OEM & ODM services.

Q2: What is your MOQ?

A: The MOQ of the coaxial cable is 3000M, the MOQ of the cable assembly is 100, and the MOQ of the customized cable is 10000 meters.

Q3: What is your delivery time?

A: Custom products are shipped within 15 days, RTS products are shipped within 5 to 7 days

Q4: What is your payment term?

A: Usually the wire transfer payment method (30% deposit in advance, 70% balance must be paid before shipment) or full payment first.

Q5: What is your trade term?

A: We currently only accept FOB trade terms.

Q6: How do you solve after-sales service?

A: If your workers know how to repair, please ask us for technical support. If there is no engineer, please return these items, we can repair it for you.

Q7: Can I send free samples?

A: Yes, for the products in the existing inventory can be provided free of charge, you only need to pay the courier fee, for those who need custom proofing, you need to pay the sample proofing fee, the sample fee will be refunded in the future order, the courier fee needs to be taken care of.
