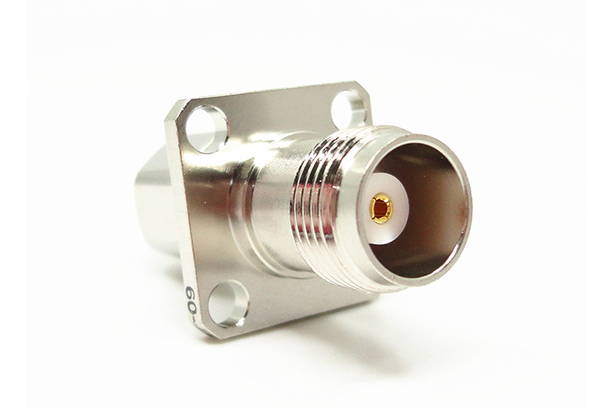

Flange TNC Jack for PCB
Frequency range: 0~9GHz
V.S.W.R: ≤1.2
Impedance: 50 Ω
Can be customized as required
Specification
| Frequency | DC to 9GHz | ||||||||||
| Rated voltage | 500 V MAX | ||||||||||
| Impedance | 50 ohms | ||||||||||
| Direction | straight | ||||||||||
| Pressure | 1500V RMS minimum at sea level | ||||||||||
| Insulation resistance | 5000 megaohms min. | ||||||||||
| Temperature range | -65°C to +165°C | ||||||||||
| The main body material | |||||||||||
| Joint | brass (nickel) | ||||||||||
| Case | brass (nickel) | ||||||||||
| O-type seals | silicone rubber | ||||||||||
| Brass | H65 | ||||||||||
| Center needle | phosphor bronze (gold plated) | ||||||||||

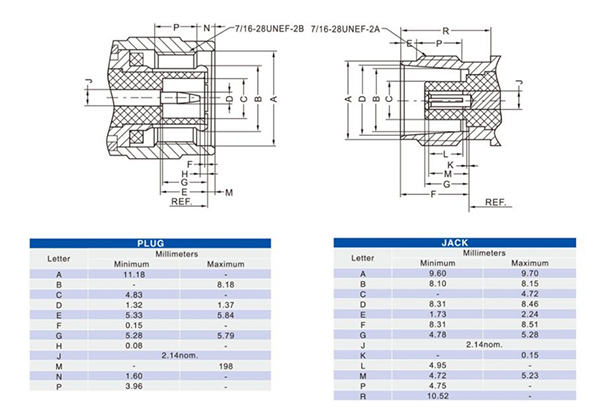

| The connector is a threaded version of the BNC connector, Thread Neil-concelman. TNC series products are developed and produced according to MIL-C-39012, a small and medium power connector with threaded connection mechanism, which has the characteristics of strong earthquake resistance, high reliability, excellent mechanical and electrical properties | |||||||||||
Application scenario
Main applications:
Antenna, cable, automobile, radio, video, broadcast, monitor, base station, medical equipment, inspection equipment, CCTV, TV, HDTV, etc
Our advantage
TNC series product is a kind of threaded rf coaxial connector, which has the characteristics of wide working frequency band, reliable connection and good vibration resistance.
