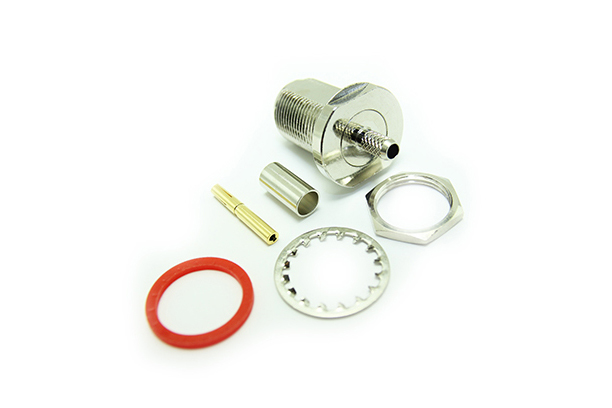

N Jack for Cable RG316/174

Frequency range: 0 to 6GHz

V.S.W.R: ≤1.3

Impedance：50Ω

Customizable on demand

Last product Next product Get product quotes

Specification
Application scenario
Our advantage
FAQ

Specification

Electrical performance parameter
Frequency range						DC-11GHz
Voltage resistance						≧15000V
Characteristic impedance						50Ω
Insulation resistance						≧5000MΩ
Inner conductor						≦1.0mΩ
Outer conductor						≦0.2 MΩ
V.S.W.R						≦1.3
Temperature range						-45℃ to 85℃
Durability						≧500
Materials and Coatings
Case						brass nickel plated
Inner conductor						beryllium copper gold plated
Insulator						ptfe

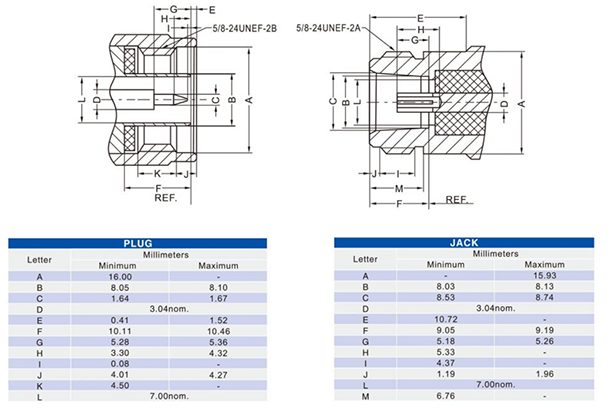

N-type Connector, commonly known as n-head, is a kind of coaxial cable Connector, full name Nut Connector (Nut Connector). It is threaded and can be swivel-locked. The Navy, a threaded joint, was introduced in 1940 and is mainly used in military systems below 4GHz. In 1960, the operating frequency was improved to 12GHz, and then increased to 18GHz, commonly used for 50 ω, some 75 ω products also use n-type design, its inner conductor diameter is smaller, and 50 ω connector is incompatible. N-type connector is a kind of medium power connector connected by screw thread. It has the characteristics of high reliability, strong vibration resistance, excellent mechanical and electrical performance, etc. It is widely used in radio equipment and instruments under vibration and harsh environmental conditions, and the ground transmission system to connect rf coaxial cable.

Application scenario

Main applications: wireless, telecommunication system, outdoor RF cable, instrumentation, waveguide transmission system

Our advantage

Product advantage: N series is a kind of high-power RF connector with threaded connection structure, which has the characteristics of strong shock resistance, high reliability and excellent mechanical and electrical performance. It is used for rf cable of radio equipment and ground transmission system connector under vibration and harsh environment conditions.
