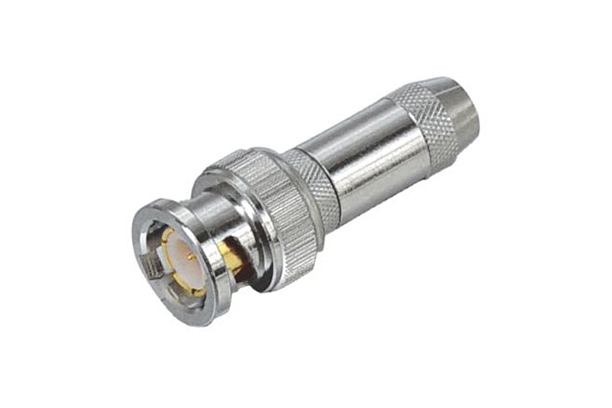

BNC Plug

Frequency range: 0 to 3GHz

V.S.W.R: ≤1.4

Customizable on demand

Last product Next product Get product quotes

Specification
Application scenario
Our advantage
FAQ

Specification

Electrical performance parameter

Frequency range

DC~4GHz

Contact resistance: inner conductor

≤1.5mΩ; Resistance Ω 0.2 m or less

Insulation resistance

≥5000MΩ

Dielectric pressure

1500V

Voltage standing wave ratio

≤1.4

Connector durability

500 times

Center contact

PIN PIN -- brass, gold plated

Insulator

ptfe

Sealing ring

silicone rubber

It is mainly used for connecting workstation and other systems that require high scanning frequency. The BNC connector can isolate the video input signal, so that the interference between signals is reduced and the signal bandwidth is larger than ordinary D-SUB, which can achieve the best signal response effect.
BNC Connector is a type of Connector used for coaxial cable. It is called a Bayonet Nut Connector. It is also called a British Naval Connector. Probably the first use of the joint by the British Navy) or the Bayonet Neill Conselman (a man named Neill Conselman invented the joint). BNC connector has not been eliminated so far, because coaxial cable is a kind of shielded cable, has the advantages of long transmission distance and stable signal. At present, it is also widely used in communication systems. For example, the E1 interface in network equipment is connected by two COAXIAL cables with BNC connectors, and it is often used to transmit audio in high-grade monitors and audio equipment

Application scenario

Mainly used in: antenna. Wire and cable. Cars. Radio. Video display. Broadcasting. Telecommunications. Satellite communications. Monitor. Radio. Base stations. Medical equipment. Detection equipment. Closed circuit television. High-definition television and all sorts of things

Our advantage

Product advantages:

1. The appearance of BNC is spiral lock, according to the design, it can be more firmly connected to the port, and will not occur the interface loose and bad contact problems;

2.BNC connector has the ability of anti-jamming, and the signal bandwidth is larger than ordinary VGA, which can achieve the best signal response effect.

3. Coaxial cable is easy to weld
