Specification

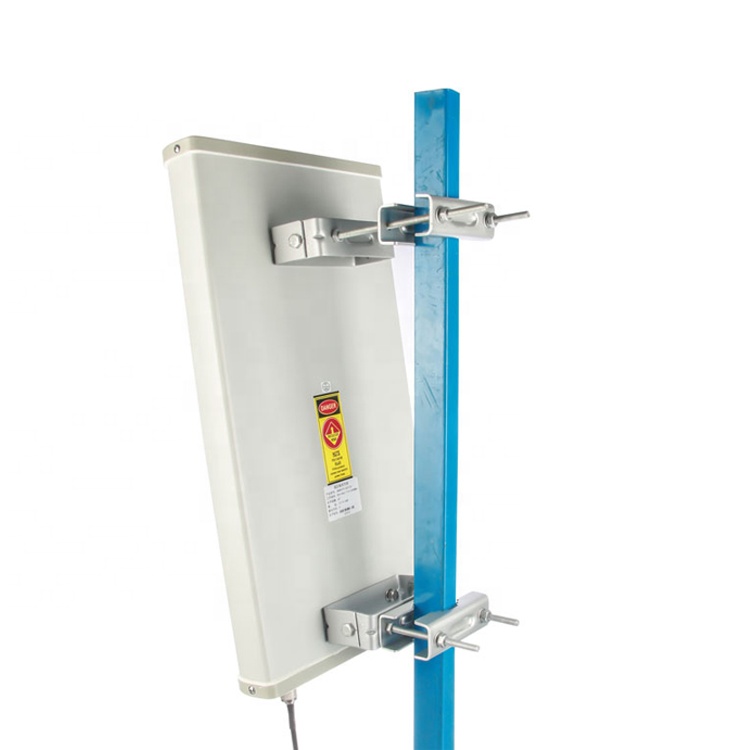

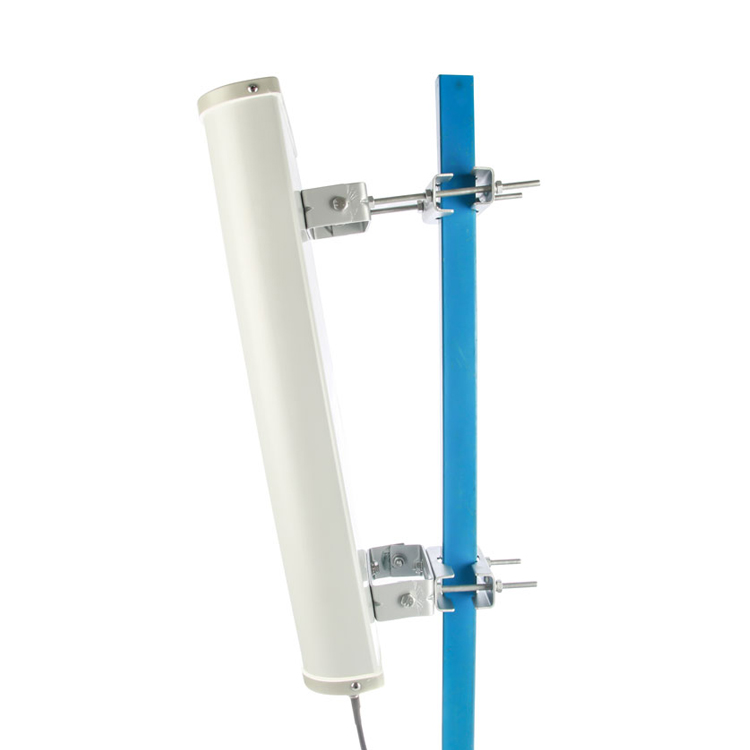

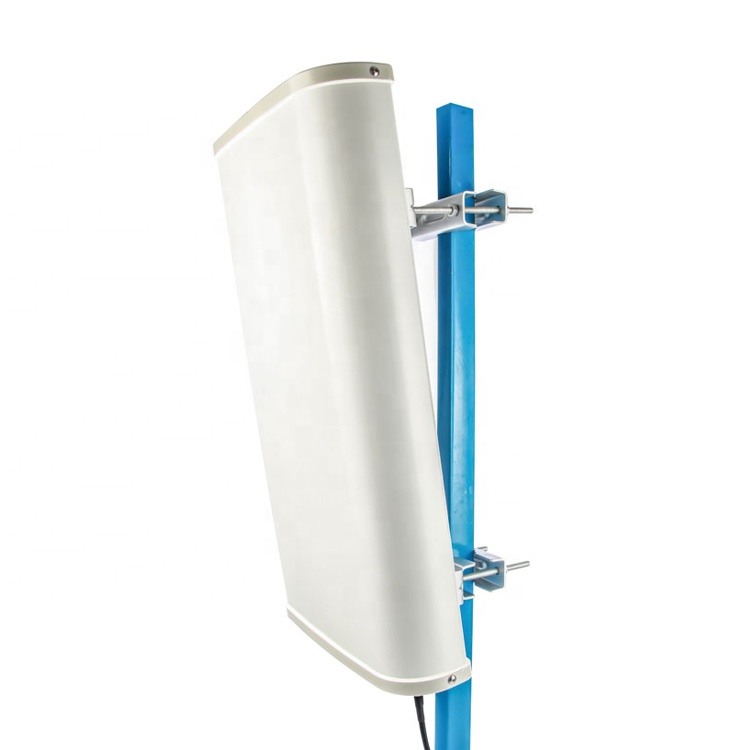

directional WiFi base station panel MIMO antenna
824~960/1710~2690MHz Sector Plate Antenna Directional Panel Outdoor Wifi Antenna 4G/5.8G WiFi base station panel MIMO Antenna
Item : 800 2700MHz Panel Outdoor Wifi Antenna
Place of Origin : Shenzhen,Guangdong,China
Frequency Range : 824~960/1710~2690 MHz
Tape Width : 136/980MHz
Gain : 12±0.3/14.5±0.3 DBI
V.S.W.R : ≤1.5/≤1.7
Polarization Type : vertica polarization
Radiation Direction : directiona
Input Impendence : 50Ω
Half Power Corner : H 65°/ E 30°
: H 65°/ E 15°
Front and Back Compare : ≥20/≥25 dB
Max Input Power : 200W
Antenna Size : 580×320×80mm
Antenna Cover Material : UPVC
Connect Type : N-K
Mechanically adjustable inclination : 0～15°
Operating Temperature : -20℃～+85℃
Storing Temperature : -40℃～+85℃
Mounting : L bracket installation
Lightning Protection : DC grounding
Wind Resistance : 60m/s
Pole : ф35-ф75 mm
Weight : 5kg

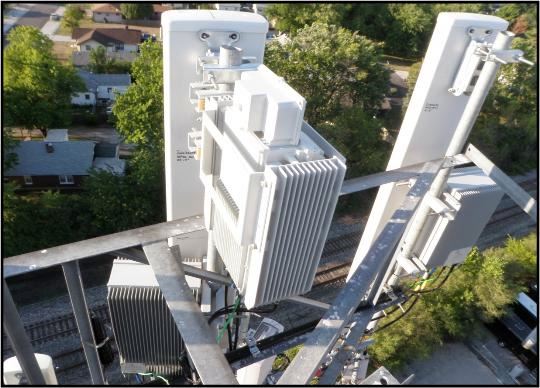

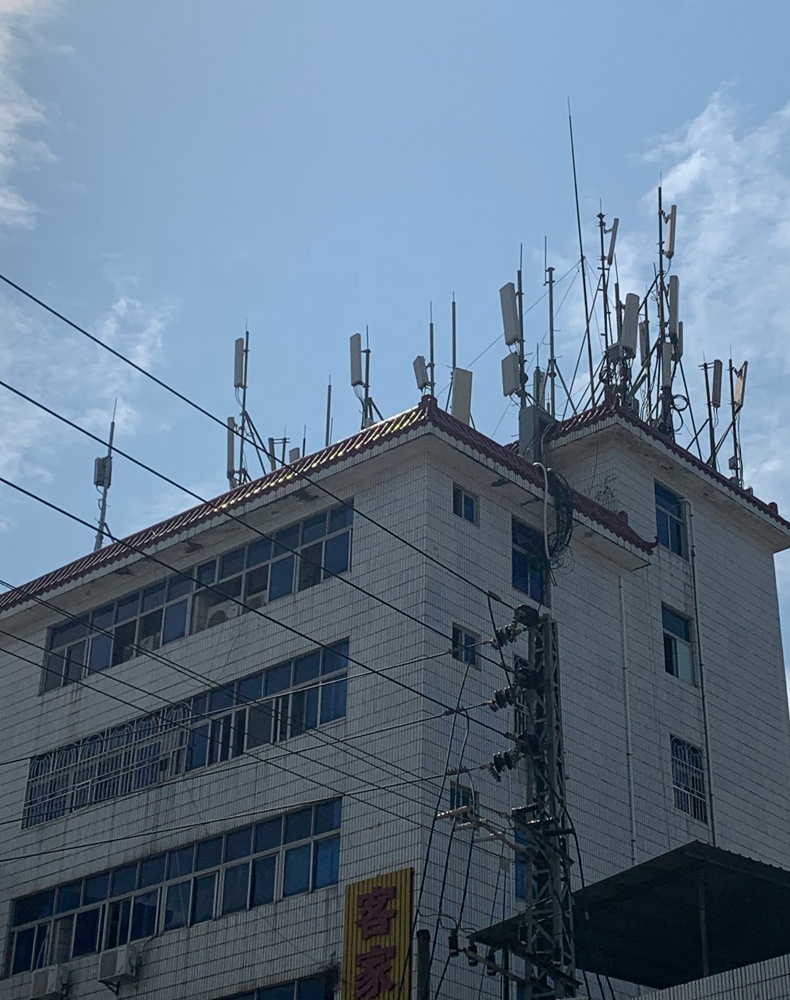

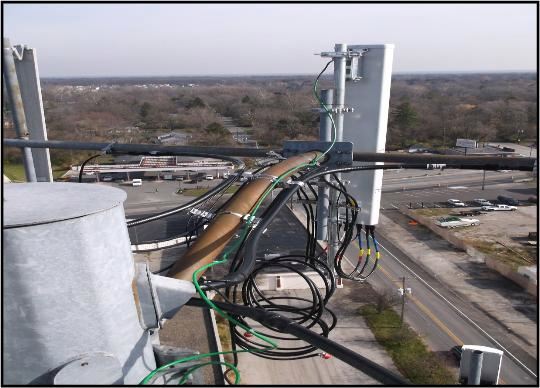

Application scenario
Our advantage
