Specification

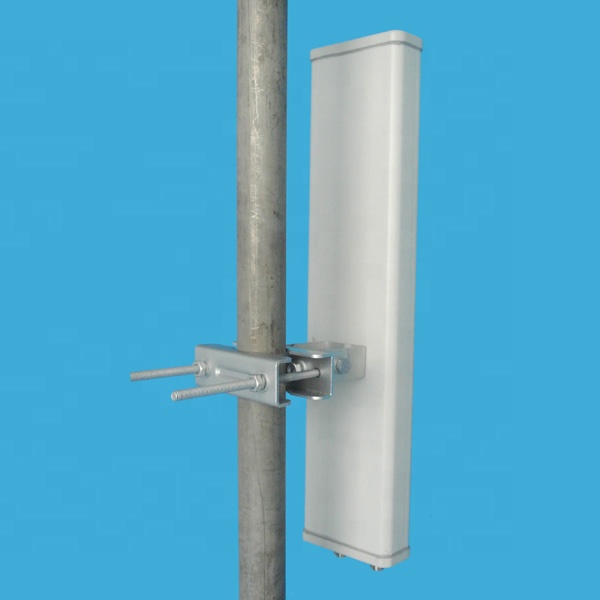

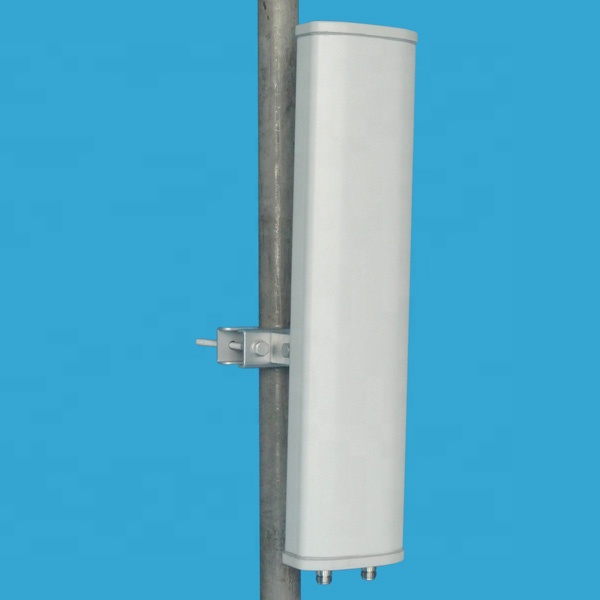

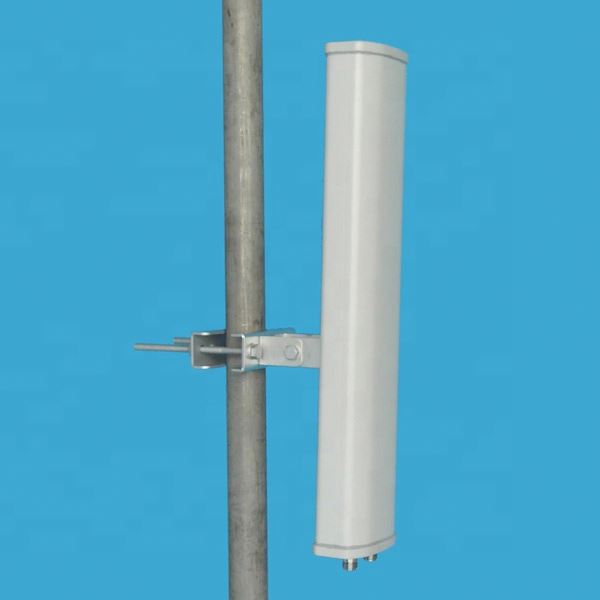

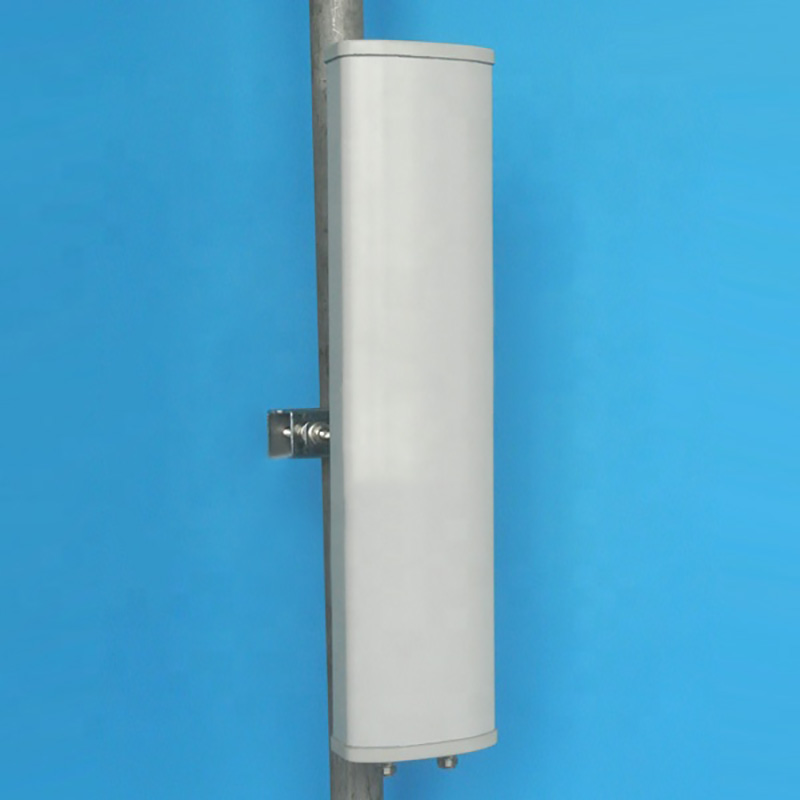

5.8ghz dual band antenna 5725 - 5850 MHz 2 x 17 dBi Directional Base Station Repeater Sector Panel Antenna
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application:
5.8 GHz WLAN system
5.8 GHz ISM band
Public wireless hot spot coverage
Frequency range(MHz)：5725~5850
Polarization：±45º
Gain(dBi)：2×16.5
Half-power beam width(°)：H:90 V:7
Front-to-back ratio(dB)：≥23
Input Impedance(Ω)：50
VSWR：≤1.5
Isolation between ports：≥28dB
Cross-polar ratio：≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon：15 dB
Maximum input power(W)：200
Lightning protection：DC Ground
Mechanical Specifications
Input connector type：2-N Female
Dimensions-mm (Height/Width/Depth)：580*114*54
Packing size(mm)：620*155*145
Antenna weight (kg)：3
Radome material：UPVC
Radome color：Gray
Mechanical tilt(°)：0~10
Operating temperature(°c)：-40~60
Rated Wind Velocity(m/s)：60
Waterproof Standard：IP67
Mounting way：pole-holding
Mounting hardware(mm)：35 ~ 75
Panel Antenna,5.1-5.8Ghz Outdoor broadband 17dBi dual polarization sector MIMO antenna with N female 90 degree coverage

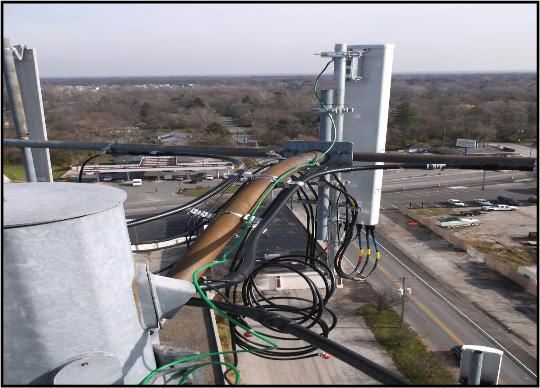

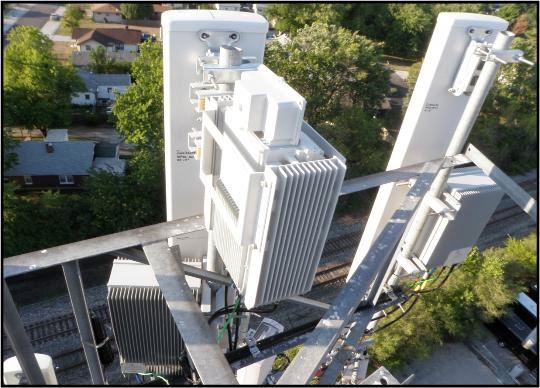

Application scenario
