100W 4g Antenna Long range 4g lte sector antenna for base station
  • 100W 4g Antenna Long range 4g lte sector antenna for base station
  • 100W 4g Antenna Long range 4g lte sector antenna for base station
100W 4g Antenna Long range 4g lte sector antenna for base station 100W 4g Antenna Long range 4g lte sector antenna for base station

100W 4g Antenna Long range 4g lte sector antenna for base station

Last productNext product

Which of our products are interested in, please fill in some specific, convenient for us to serve you!

Name:

Tel:

E-mail:

Country:

Interested product name :

CAPTCHA:

Submit the information to obtain product spec sheet，Please make sure that your email address is absolutely correct！

Get product quotes
  • Specification
  • Application scenario
  • Our advantage
  • FAQ

Specification

Frequency Range-MHz700-9601710-2700
Gain-dBi1518

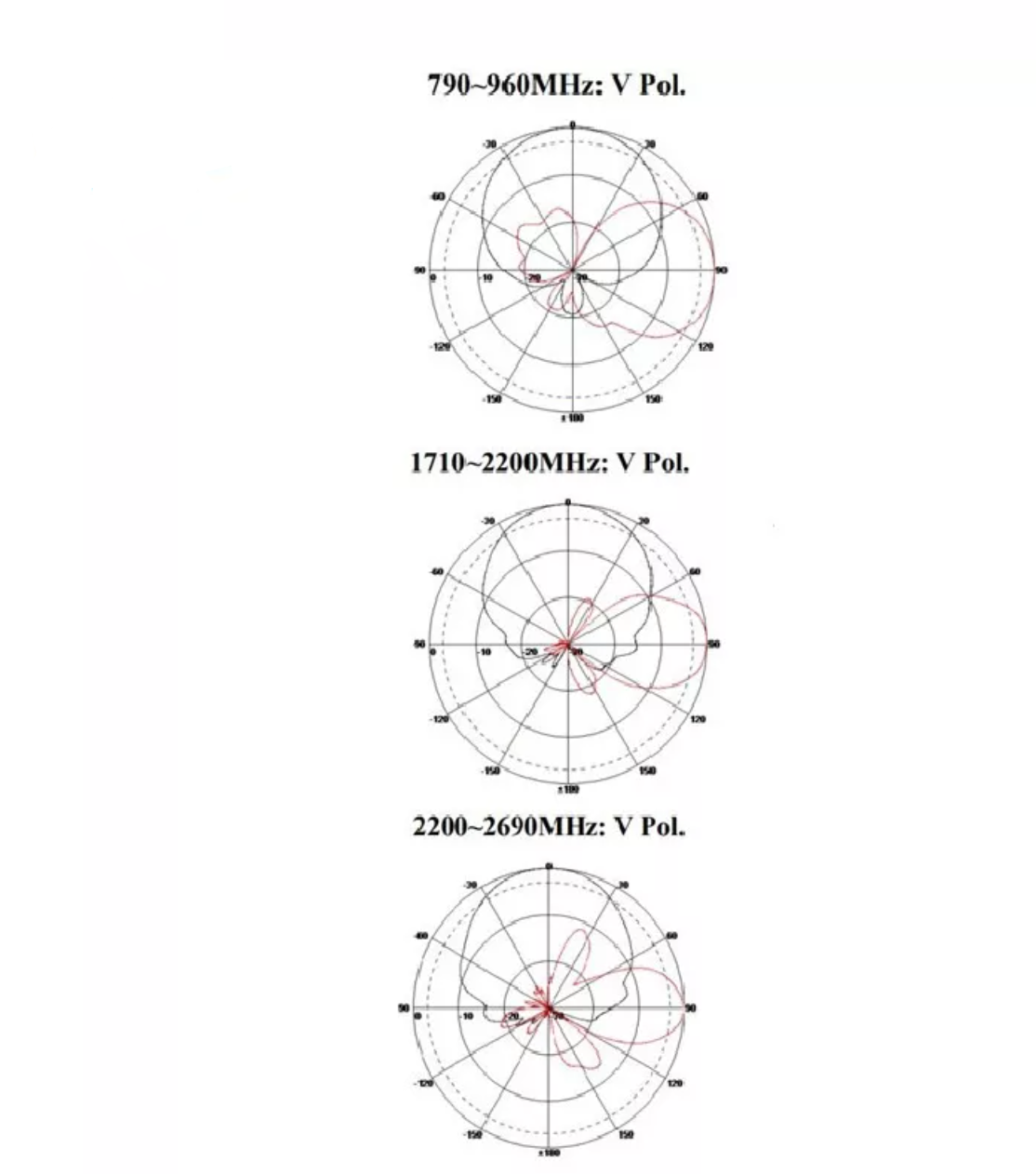

Horizontal Beamwidth-º65
Vertical Beamwidth-º15
VSWR≤2.0
F/B Ratio -dB≥25
Impedance-Ω100
PolarizationVertical
Maximum Power-W50
ConnectorN female or customized
Dimensions-mm1300×280×130
Weight-Kg11

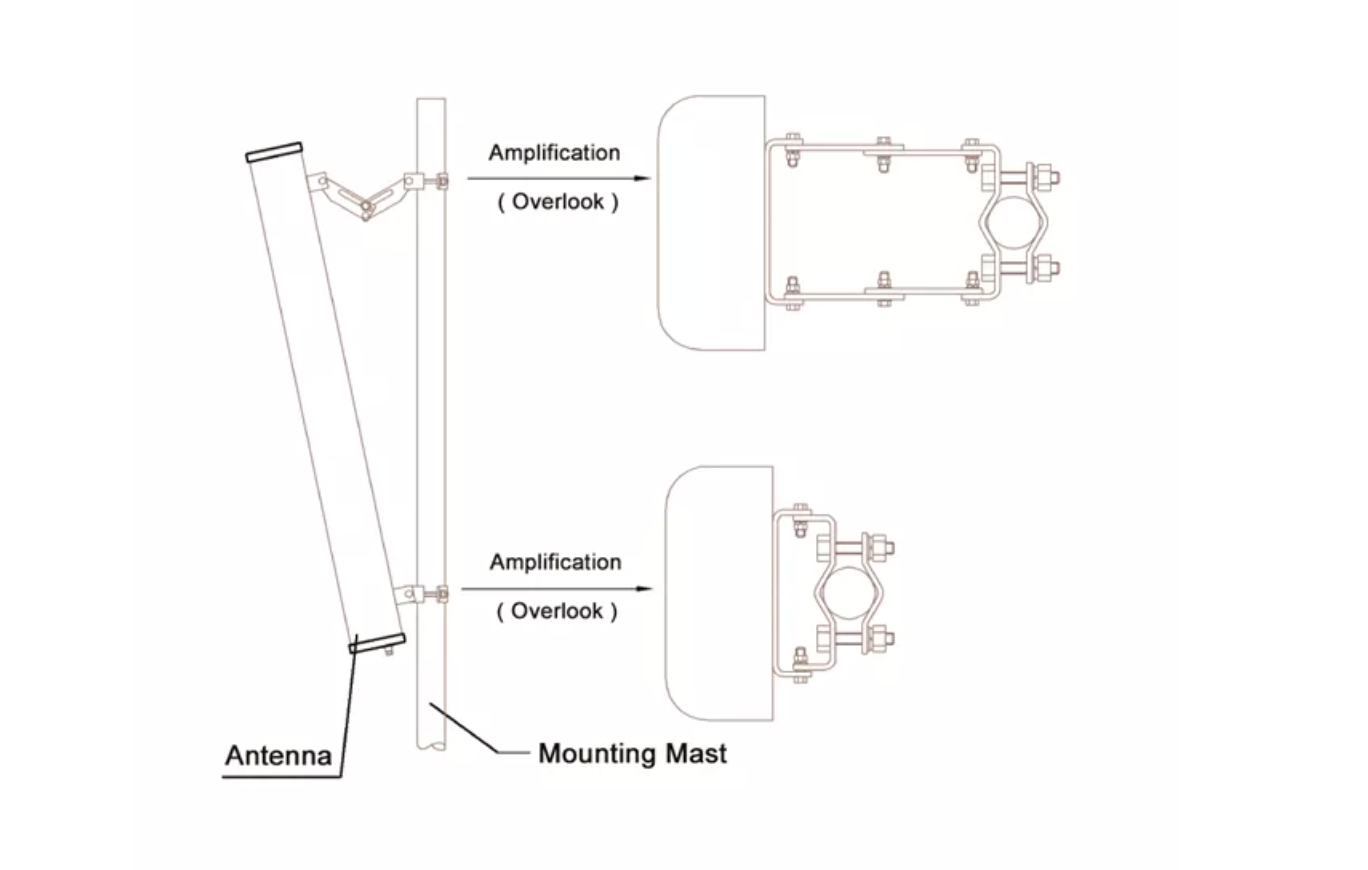

Mounting Mast Diameter-mmΦ50-70
4G 700-2700MHz long range full band outdoor sector panel antenna base station antenna

* Broad band, Cover 700 to 2700MHz common system

* Light weight, Small size

* UV stable ABS radome

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

CDMA,GSM system

Wireless communication and data transmission system
