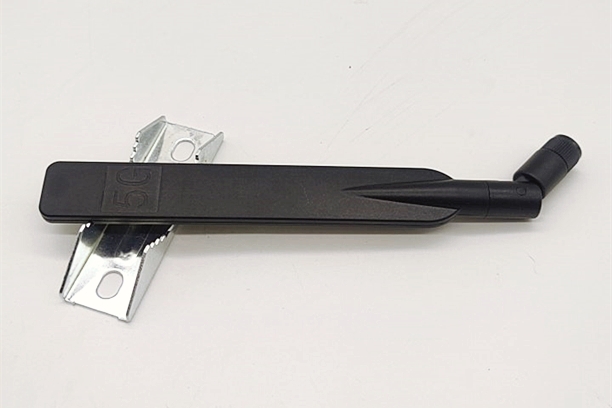

Description: Exquisite appearance, embossable font, easy installation of regular SMA interface, low VSWR, stable performance, PC material, corrosion resistance, EUV light resistance, etc
Specification
| Electrical performance parameter | |||||||||||
| Frequency | 617~960MHz 1710~2300MHz 2690MHz~3400MHz 3600~4800MHz 5150MHz~5850MHz 6950~7200MH | ||||||||||
| Gain: 3 dbi | 617~960MHz@3dBi 1710~2300MHz@2.5dBi 2690MHz~3400MHz@4.5dBi 3600~4800MHz@4dBi 5150MHz~5850MHz@2dBi 6950~7200MHz@3dBi | ||||||||||
| Standing wave ratio: 1.5 or less; Max: 2.0 | 617~960MHz@≤4.0 1710~2300MHz@≤2.5 2690MHz~3400MHz@≤2.0 3600~4800MHz@≤3.0 5150MHz~5850MHz@≤2.0 6950~7200MHz@<4.0 | ||||||||||
| Radiation | omni-direction | ||||||||||
| Polarization mode | Vertical | ||||||||||
| Maximum input power | 50W | ||||||||||
| Impedance | 50 Ώ | ||||||||||
| Joint | SMA Jack（Can be customized as required） | ||||||||||
| Installation mode | The screw thread | ||||||||||
| Material | PC | ||||||||||
| The mechanical parameters | |||||||||||
| Antenna size | φ12.5*188 | ||||||||||
| Weight: 106 g | 43 g | ||||||||||
| Operating temperature | -40℃ to+70℃ | ||||||||||
